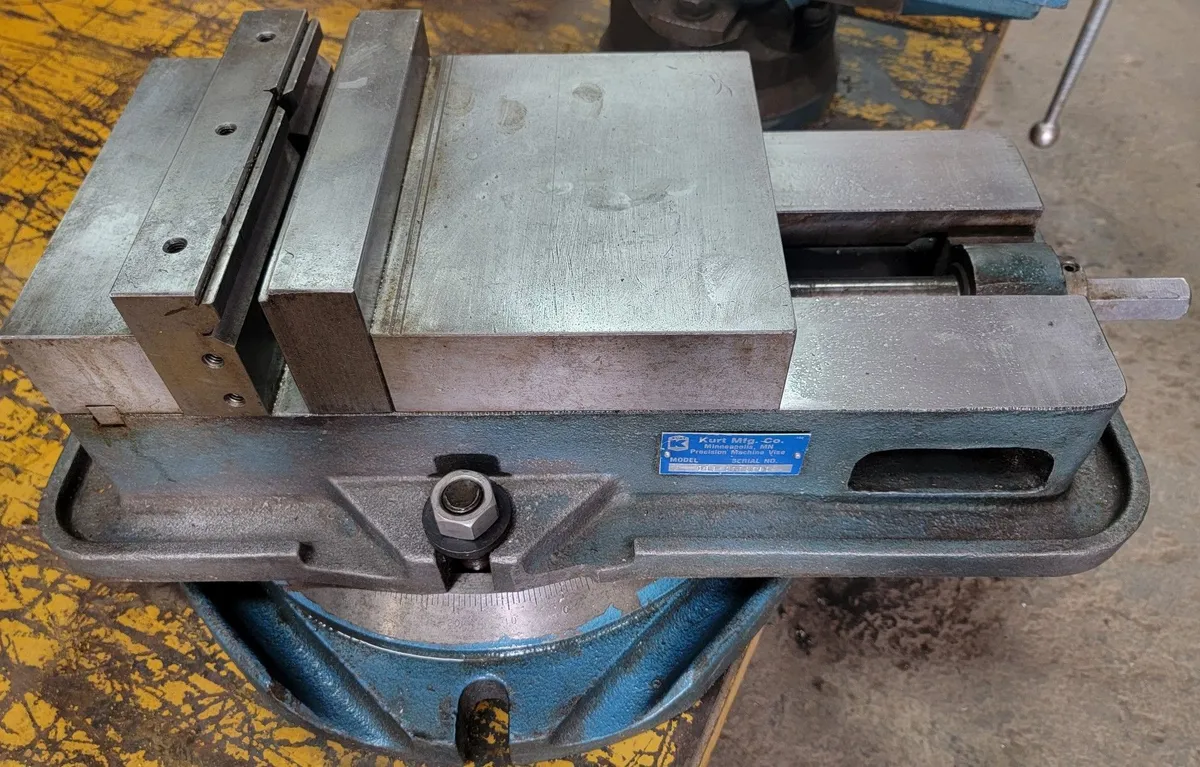

KURT D80-4 MILLING MACHINE VISE WITH SWIVEL BASE

Description

The Kurt D80 is an 8-inch heavy-duty precision machine vise built with the patented AngLock design to prevent jaw lift during high-capacity clamping. It is widely used on milling machines and machining centers for operations like drilling, boring, and tapping. [1, 2]
Key Specifications
• Jaw Width: 8.00 inches
• Max Jaw Opening: 8.00 inches (standard) up to 9-5/8 inches (with jaws in outer positions)
• Jaw Height: 2.20 inches
• Throat Depth: 2-13/64 inches
• Clamping Force: Up to 11,000 lbs at maximum torque
• Bed Height: 3.310 inches
• Overall Length: 24.18 inches
• Overall Height: 5.50 inches
• Body Material: 80,000 PSI ductile iron
• Weight: Approximately 155 lbs

Description provided through AI and must be verified
