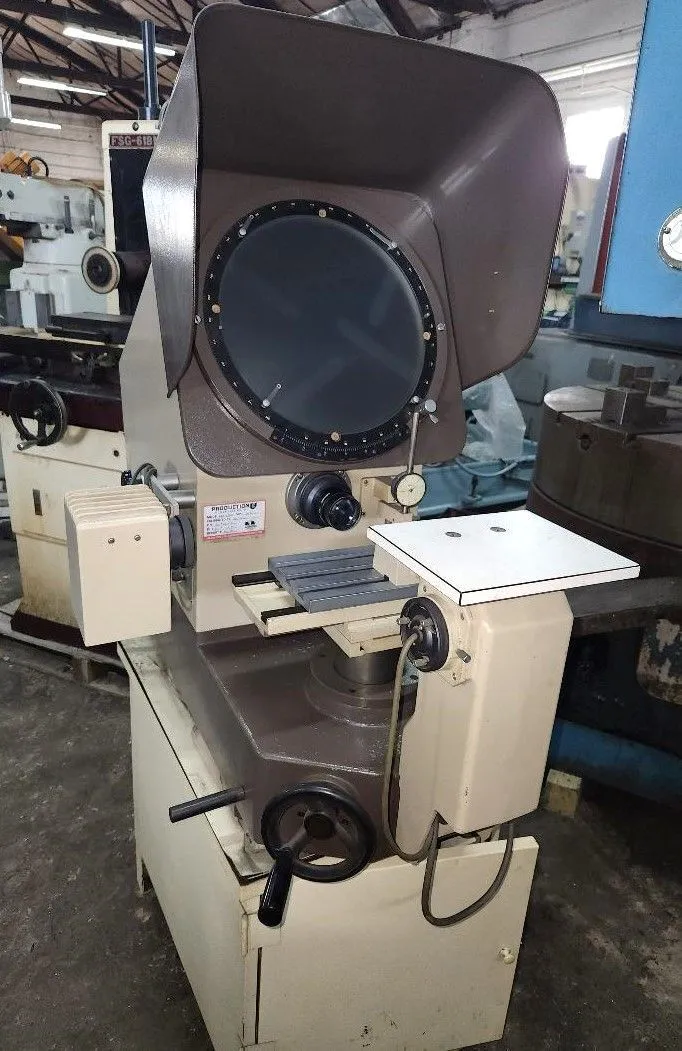

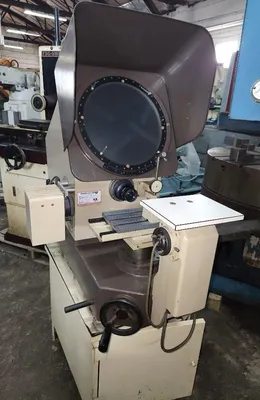

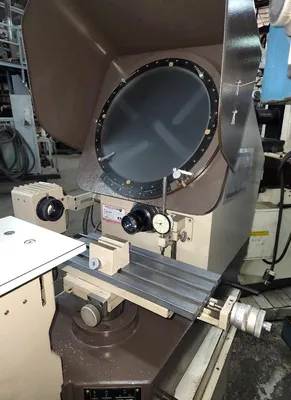

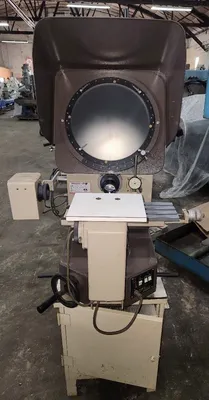

USED MITUTOYO PH-350 OPTICAL COMPARATOR

Screen Diameter: 14"
Table Size: 5.9" x 15.7"
Longitudinal Table Travel: 6"
Cross Table Travel: 1.750"
Vertical Table Travel: 4"
Angular Measuring Capacity: 360 Degree Chart Rotation
Maximum Capacity On Table: 99 Lbs.
Tungsten Halogen Projection, 12 Volt, 150 Watt
Tungsten Halogen Surface Illumination, 12 Volt, 150 Watt
With Adj Lens 10-20-50 for Side Illumination
Miscellaneous Spare Bulbs
Cabinet Base
110V/60/1 Electrics
10X, 20X Lens on Table Illumination
Approximate Weight: 300 Lbs.

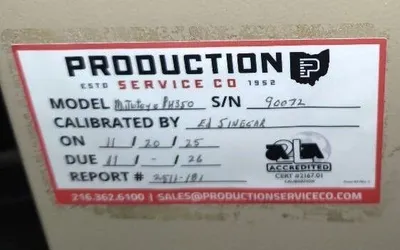

**CALIBRATED ON 11/20/2025**
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
