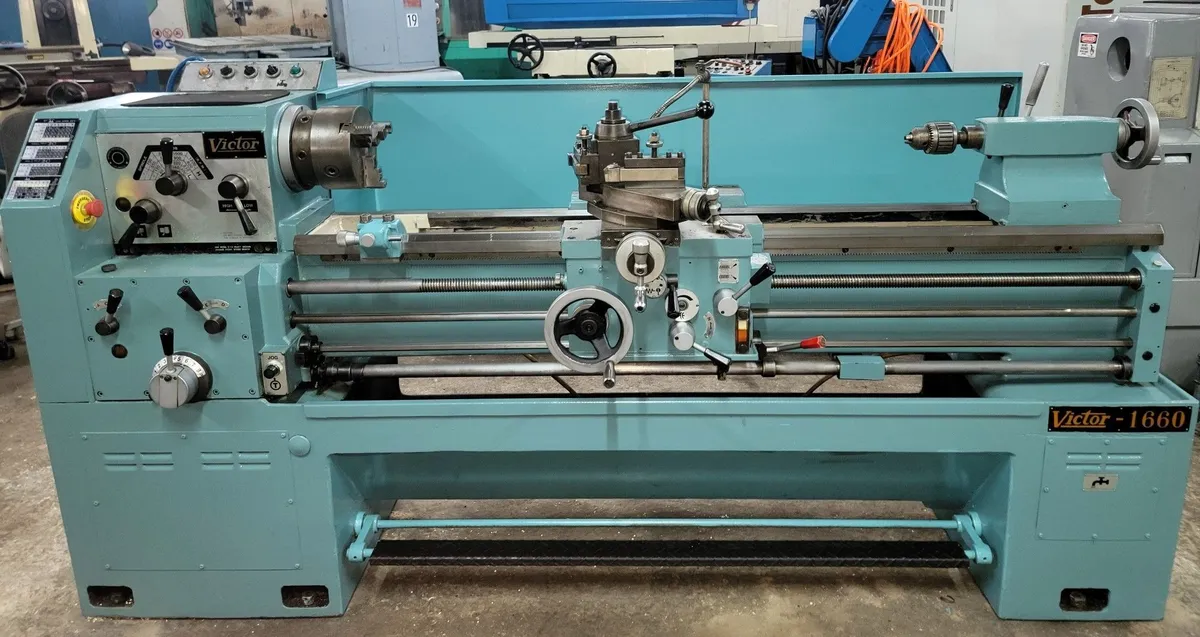

USED VICTOR LATHE 16" X 60"

Swing 16"
Centers 60"
Swing in Gap Bed 23.5"
Spindle Bore 2"
Swing Over Cross Slide 9.5"
Spindle nose - camlock D1-6
Spindle Speeds (12) 30-1,800 RPM
Tailstock has #4MT in the Spindle
Inch Threading (32) 4-56 TPI
Metric Threading (25) .25-6.0 MM
Longitudinal Feeds (24) 3.3-23.3 IPR
Cross Slide Feeds (24) 1.6-10.8 IPR
Motor 7.5 HP (2 Speed)
Power 220 Volts/3 Phase
Bison 8" Diameter 3-Jaw Chuck W/2 Piece Jaws
Quick Change Toolpost with 2 Holders
Live Center
Jacobs Model #18N 1/8" - 3/4" Drill Chuck
4 Position Carriage Stop
Micro Carriage Stop
Coolant System
Work Light
Full Length Splash Guard
