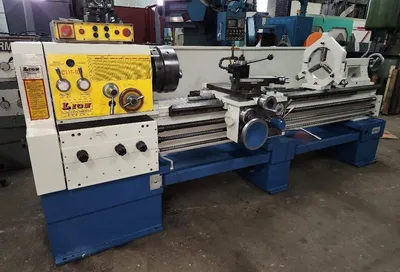

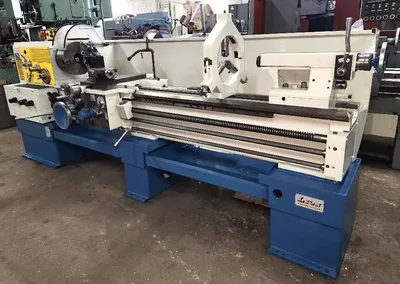

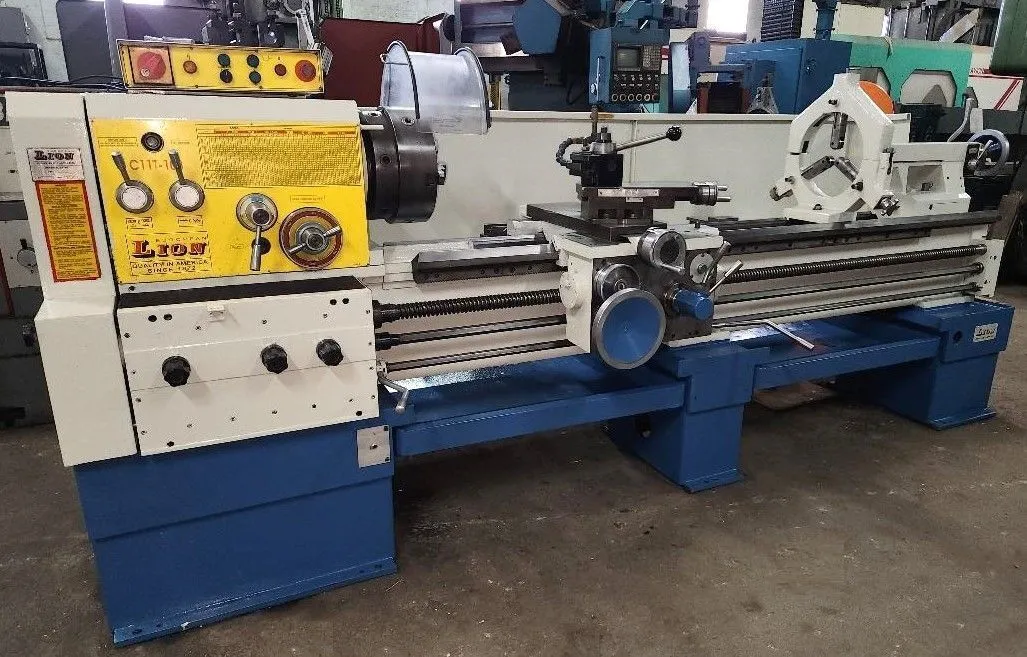

LION (EUROPEAN) 20" X 80" LATHE WITH CLUTCHES
Have one to sell?
ConditionUsed
1 available
LION EUROPEAN
MODEL #C11T-103
CLUTCHES IN THE HEADSTOCK
20" SWING OVER THE BED
80" BETWEEN CENTERS
GAP BED APPROXIMATELY 26" SWING
D1-11 SPINDLE MOUNT
4" SPINDLE BORE
18 SPINDLE SPEEDS 8-1400 RPM
INCH & METRIC GRADUATIONS ON THE CARRIAGE DIALS
128 INCH THREAD CHANGES (SOME REPEATS) 1/4-120 TPI
128 METRIC THREAD CHANGES (SOME REPEATS) .25-120 MM
128 LONGITUDINAL FEEDS (SOME REPEATS) .0019-.9048 IPR
128 CROSS FEEDS (SOME REPEATS) .0007-.4524 IPR
RAPID TRAVERSE ON THE CARRIAGE
12-3/4" DIAMETER 3 JAW CHUCK WITH 2 PIECE JAWS
ALORIS QUICK CHANGE TOOL POST WITH 4 HOLDERS
TAPER ATTACHMENT
ROLLER STEADY REST WITH 12" OPENING
COOLANT SYSTEM
CHUCK GUARD
FULL LENGTH SPLASH GUARD
MACHINE WIRED FOR 440 V/3 PH
