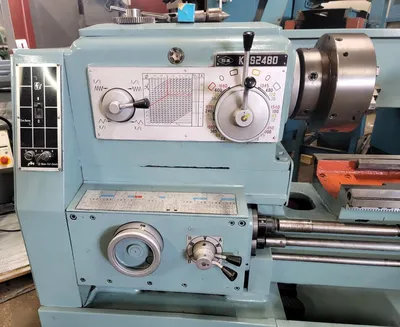

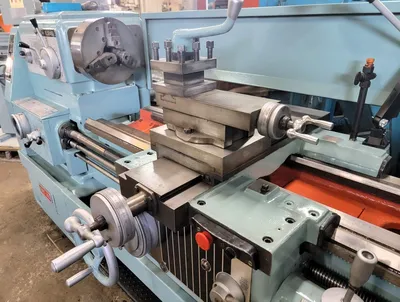

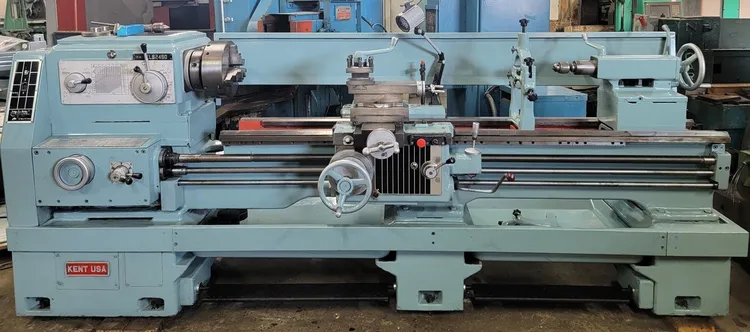

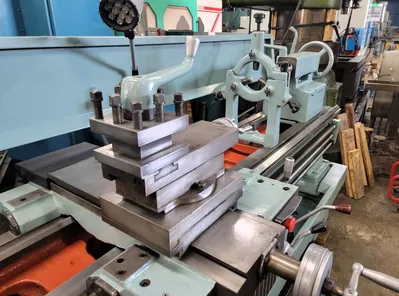

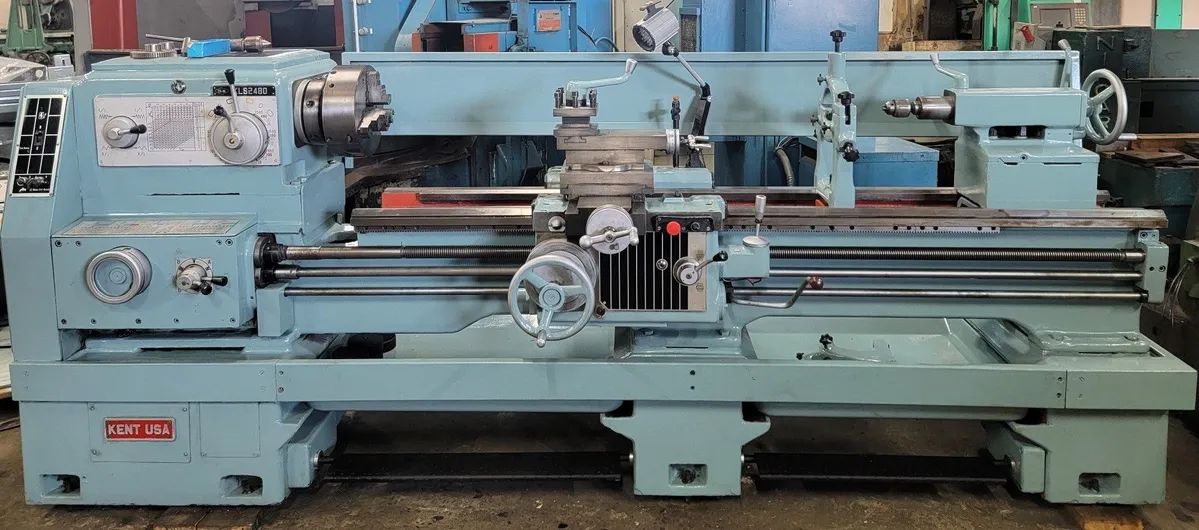

KENT 24" SWING X 80" CENTER LATHE

Swing Over Bed 24"
Width of Bed 15.75"
Distance Between Centers 80"
Swing Over Gap 32"
Effective Gap Length 11.5"
Spindle Bore 3.1"
Spindle Speeds 24 Steps
Spindle Speed ​​Range 12-1680 RPM
Spindle Nose D1-8
Thread – Standard (Whit-worth) 34 (1-48 TPI)
Thread – Metric Pitch 42 (0.5 - 96 mm)
Thread Diametral 47 (1 - 192)
Thread Module 30 (.25 - 24)
Longitudinal Feeds
Cross Feeds
Leadscrew Diameter 1-9/16"
Leadscrew Thread Pitch 4
Quill Travel 6”
Quill Diameter 2.9"
Quill Bore Taper MT#5
Main Engine 10 HP
Coolant Pump Motor 1/8 HP
Packing Dimension 142" x 45” x 56”
Net Weight 8580 lbs
