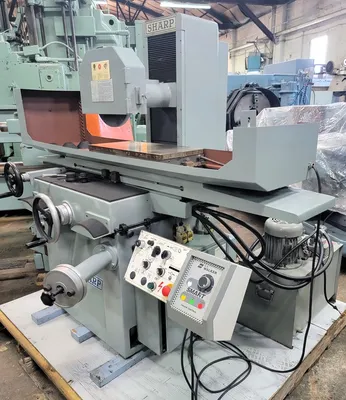

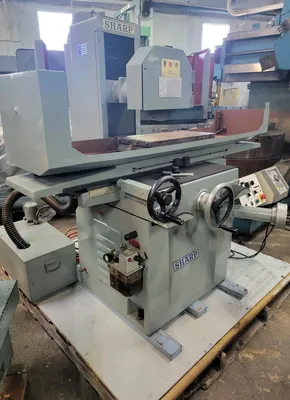

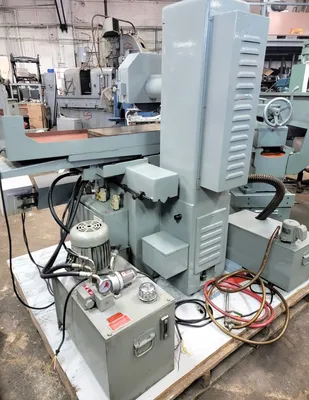

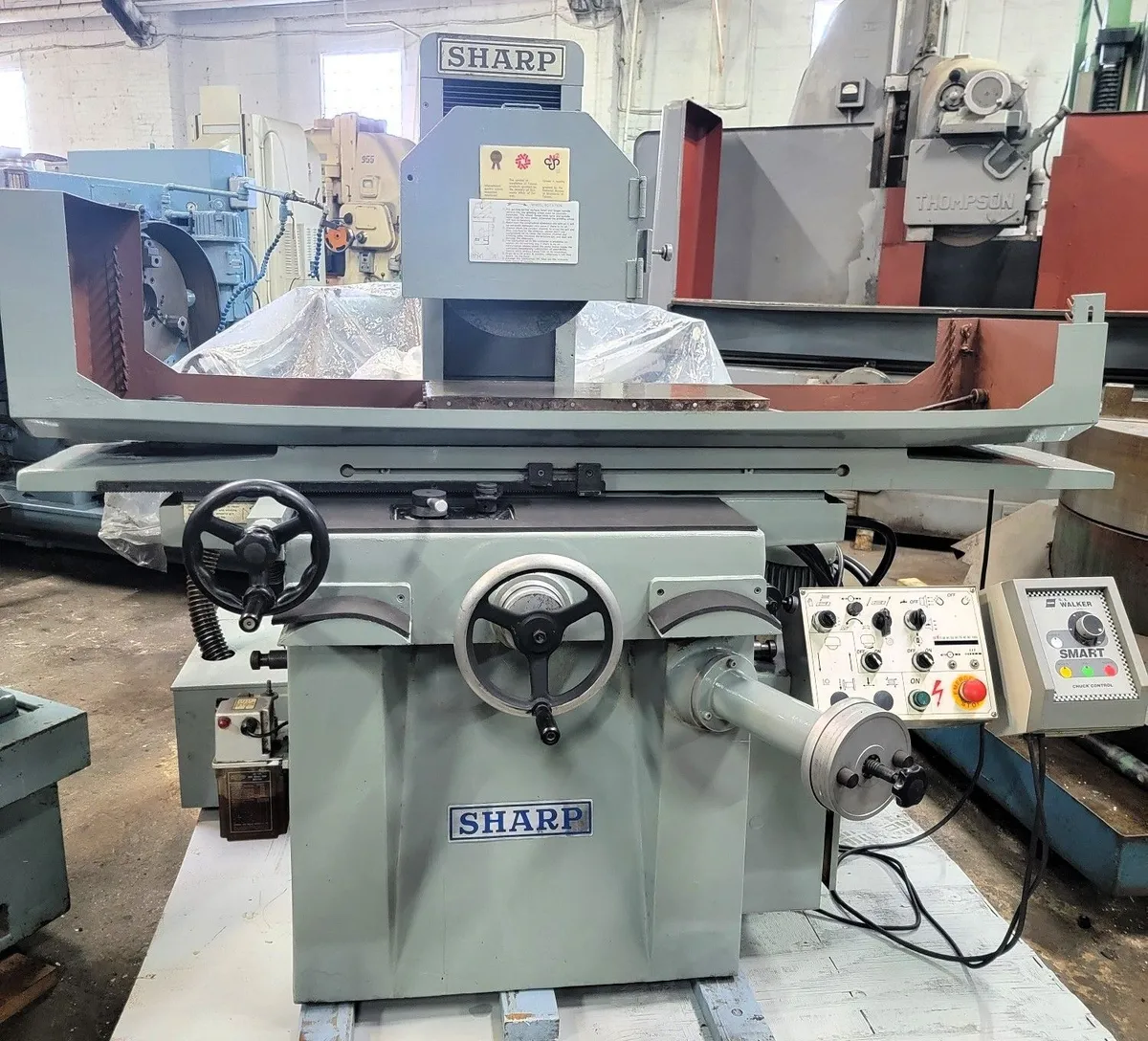

SHARP 12 X 24 AUTOMATIC SURFACE GRINDER

Description

Sharp Automatic Surface Grinder

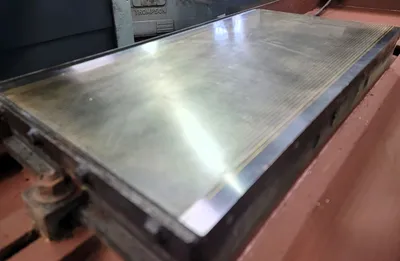

113/4 " x 23 1/2" Fine Pole Electro Magnetic Chuck

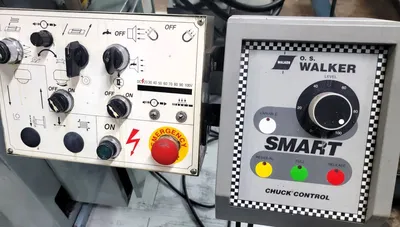

with Walker Smart Control
2-axis auto and manual down feed
3HP Motor
Spindle Speed 1,720 rpm
2-V Ways
Extra Wide Bed
Double Longitudinal “V” Ways and Cross “V” Ways
Hydraulic Table
Auto Cross feed
Grinding Wheel 14” x 1” x 5”
Auto Lube System
12 Gal Coolant System
Wheel Adapter/Flange
Longitudinal Hydraulic Table Feed
Intermittent Cross Feed
Number of Graduations on Dial 200
Feed per Graduation 0.0005"
Feed per Revolution 0.1"
Vertical Travel
Number of Graduations 500
Feed per Graduation 0.0001"
Feed per Revolution 0.05"
Coolant System Motor 1/8 HP
Weight 4,000 lbs.
220 volt 3 ph
Dimensions 76.8"L x 73.6"W x 71"H
