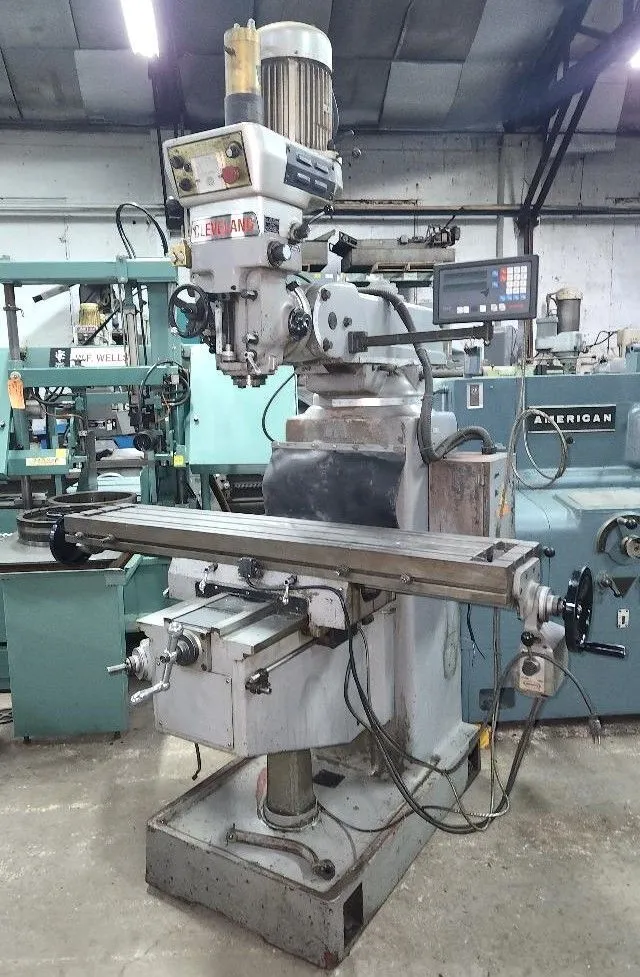

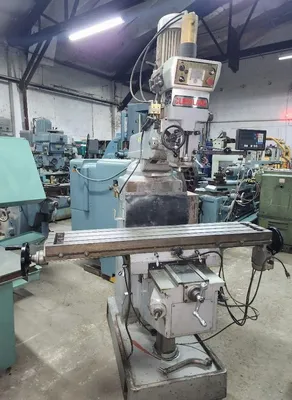

USED CLEVELAND LARGE K5F VERTICAL MILLING MACHINE

TABLE:
WORK TABLE: 11"X 58"
TABLE T-SLOTS (WxN): 0.63" X 3
TABLE LOAD MAX. (CENTER): 1200 LBS. (CENTER)
X-AXIS TRAVEL: 43"
Y-AXIS TRAVEL: 18"
Z-AXIS TRAVEL: 19-11/16"
QUILL TRAVEL: 6"
SPINDLE NOSE TO TABLE: 3/4" - 16-3/4"
SPINDLE CENTER TO COLUMN: 2-5/8 - 25-1/2"
RAM TRAVEL: 19"
SPINDLE TAPER: NST # 40
SPINDLE SPEED: APPROXIMATELY 3950 RPM
QUILL LARGE DIAMETER: 4.125"
QUILL FEED: 0.002", 0.004", 0.006"
SPINDLE MOTOR: 5 HP. VARIABLE FREQUENCY DRIVE
FLOOR SPACE: 106" X 72" X 90"
WEIGHT: 4000 LBS.
EXTRA EQUIPMENT:
POWER DRAW BAR
POWER FEEDS ON TABLE
NEWALL 2 AXIS DRO SYSTEM
MADE IN TAIWAN

*PRICE IS LESS THAN HALF OF NEW
