Sold

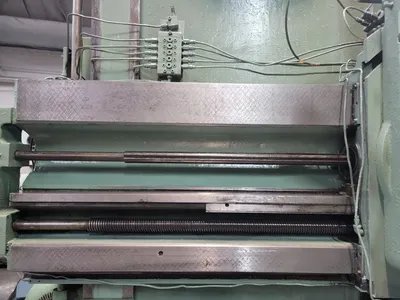

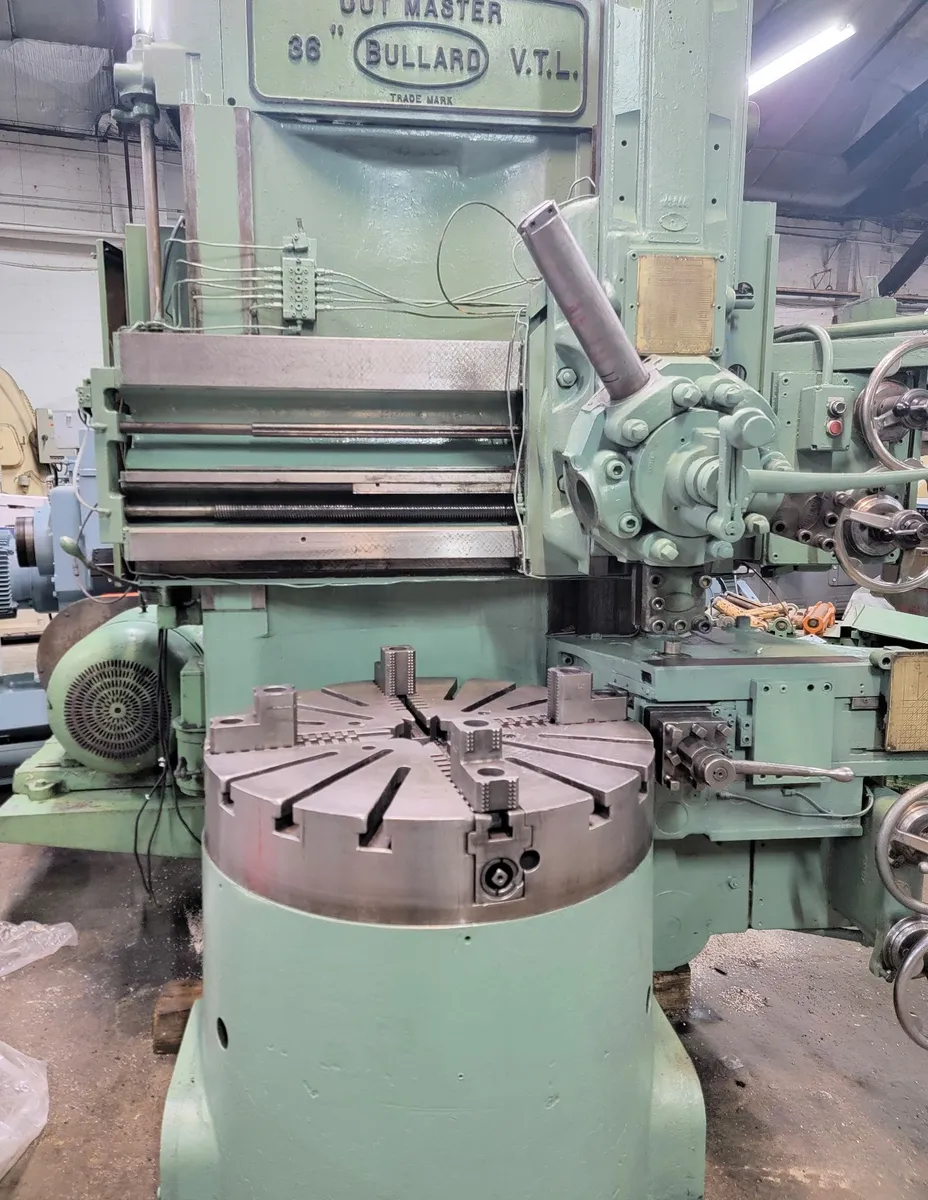

BULLARD 36" CUTMASTER VTL

Boring Mills, Vertical, including Vert. Turret Lathes
Manufacturer:
BULLARD
Model:
36" CUTMASTER VTL
Stock #:
4526
Country:
United States
Bullard Cutmaster 36" Vertical Turret Lathe 4 JAW Table Diameter: 36″ Flaking on Ways Swing w/ Side Head Working: 40″ Swing w/ Side Head Below Table: 45″ Height Under Rail: 29″ 20 Table Speeds: 6.6 – 240 RPM Table Motor: 30 HP wired 440 v 3 ph Feeds: 0.004 – 0.500 IPR Turret Head Swivel: ± 30 DEG. L-R Turret Head Vertical Travel: 26″ Side Head Horizontal Travel: 18″ Side Head Vertical Travel: 30″ Manual and Power Feeds Rapid on Rail, Side Head & Turret Side Head Overall 110" H 118" W 100" F - B 32,000 Lbs. Approx.
Table Dia36"914.4 mm
Swing45"1,143 mm
Work Ht-U/R29"736.6 mm
Power30 hp22.4 kW
RPM240 RPM240 RPM
