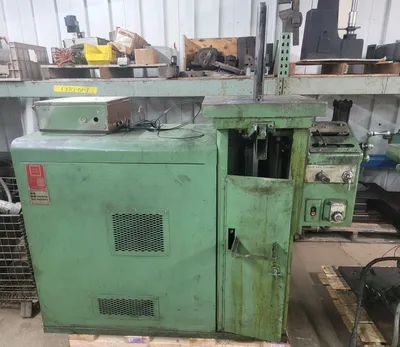

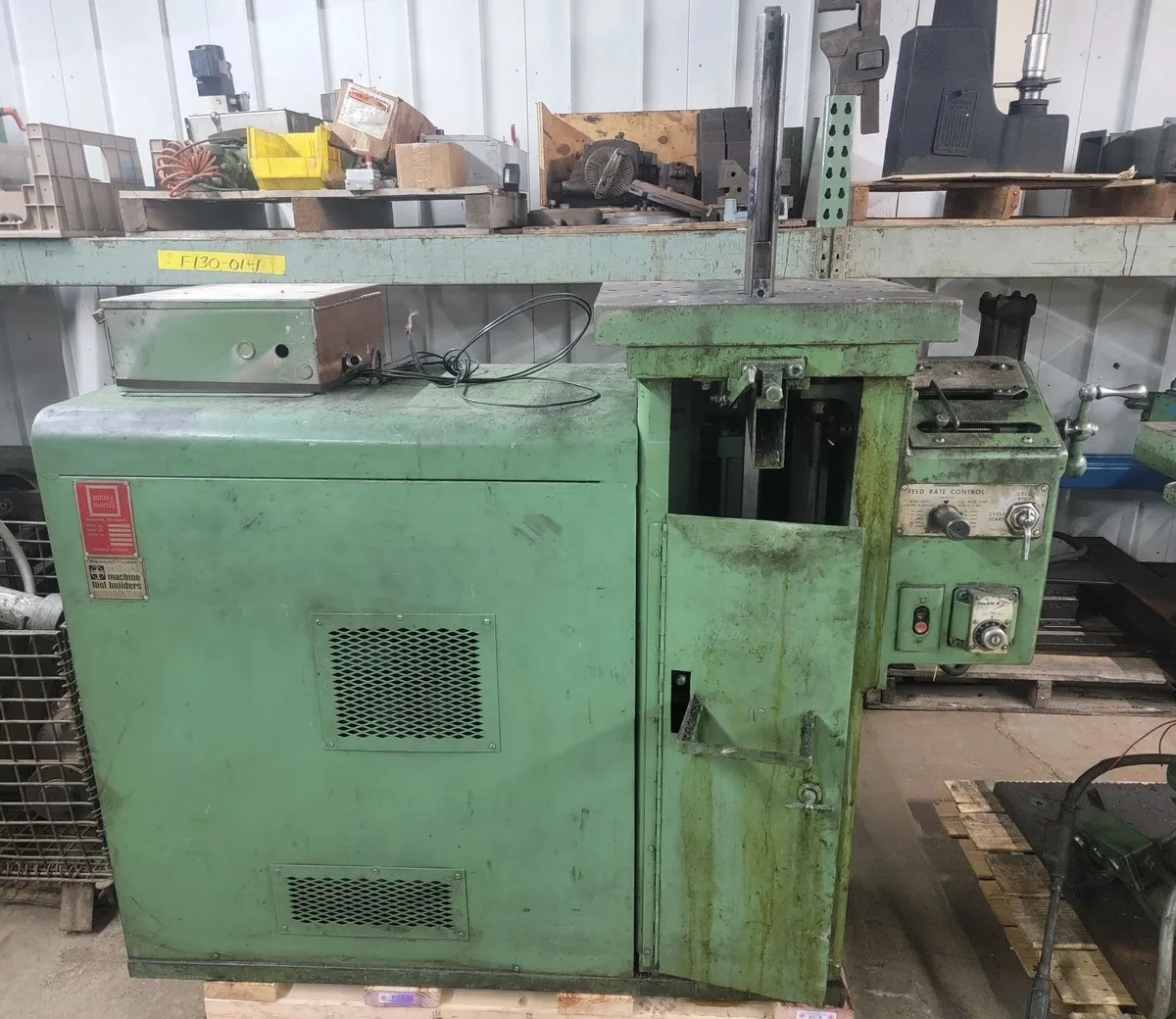

2 MITTS & MERRILL HYDRAULIC KEYSEATER, NO PIT !!
21" x 18" Plain Table
Automatic Tool Relief
Automatic & Manual Feed
No Pit Required
CATALOGUE SPECIFICATIONS:
Maximum Keyway Length 12"
Maximum Keyway Width 1-1/4"
Largest Post Capacity 2-3/8"

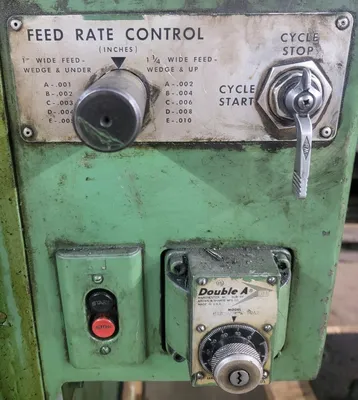

Feeds, Range Variable .002 to .010 IPS
Cutting Speed, Range 0 to 32 FPM
Constant Return Speed, Feet Per Minute 46 FPM
Crosshead Pull At 1000 PSI 4900 LBS

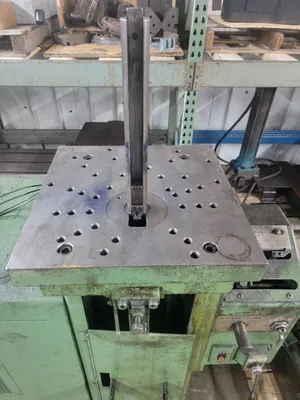

Table Size 20 x 20
Maximum Weight Piece Part 5000 LBS
Motor, Horsepower/RPM 5 HP
Electrical System 220-440/3/60
Distance, Floor to Table 49 1/2""
Floor Space Required, W x D 66 x 23
SOME TOOLING
