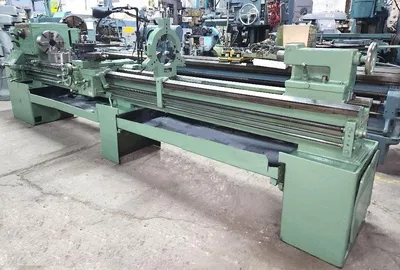

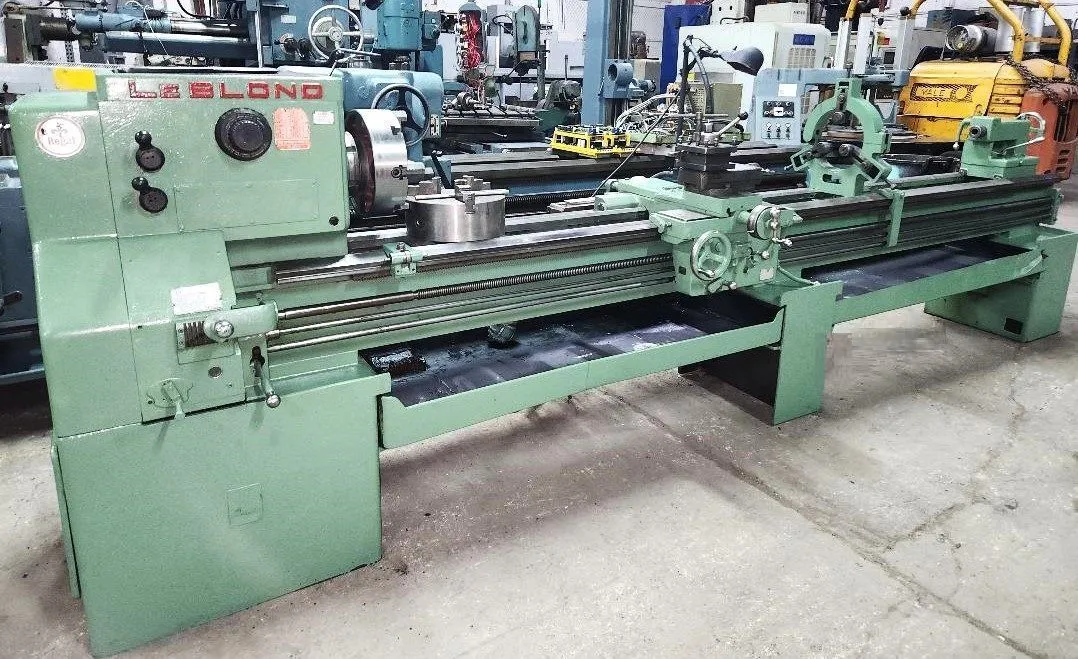

Used LEBLOND REGAL 19" x 120" SERVO SHIFT | Lathes, Engine

Description

LEBLOND REGAL SERVO SHIFT 19 1/4" SWING X 120" CENTERS
CATALOG SPECIFICATIONS:
Swing Over Bed Ways, Actual 19-1/4"
Swing Over Cross-Slide 12-1/4"
Distance Between Centers 120"
Hole Thru Spindle 1 3/4"
Spindle Nose L-1
(12) Spindle Speeds, Range 25 to 1000 RPM
(48) Longitudinal Carriage Feeds .0023 to .132 IPR
(48) Thread Changes, Range 2 to 112 TPI
Cross-Slide Cross Feed 9 5/8"
Tailstock, Spindle Taper #4 MT
Tailstock, Spindle Diameter 2-7/16"
Tailstock, Spindle Travel 7"
Motor, Horsepower 10 HP
Overall Dimensions, L x D 187" x 50"

TAPER ATTACHMENT
ROLLER BEARING STEADY REST
4 WAY TOOLPOST
3 JAW CHUCK
4JAW CHUCK
THREAD DIAL
