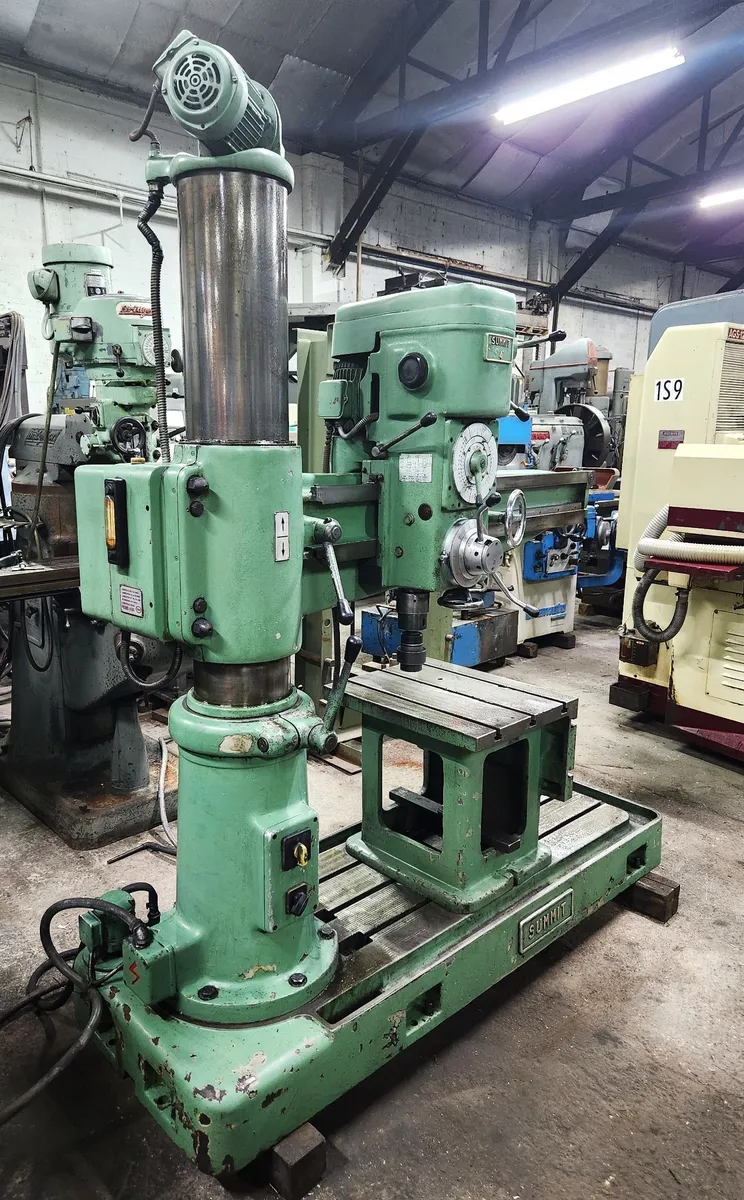

Summit 4' Arm x 8" Column Radial Drill
Have one to sell?
ConditionUsed
1 available
Summit 4' arm x 8" column Radial Drill
No 4 Morse Taper
7" Spindle Travel
Spindle Dia 2 3/8"
Min / Max distance to Base 17 1/2", 48"
Cap 1 1/4" Steel, 1 9/16" Cast Iron
If holes are predrilled the capacity is 1 3/4" Steel, 2 3/16" Cast Iron
40- 2000 RPM Has Higher Speed Option
Coolant Pump
Box Table 21 3/4" x 19 1/2" x 18"
2.8 HP
220 Volt 3 Ph
Overall Dim 70" L x 30" F-B, 83" H
Weight 3,200 LBS
*Specifications per manufacturers manual
