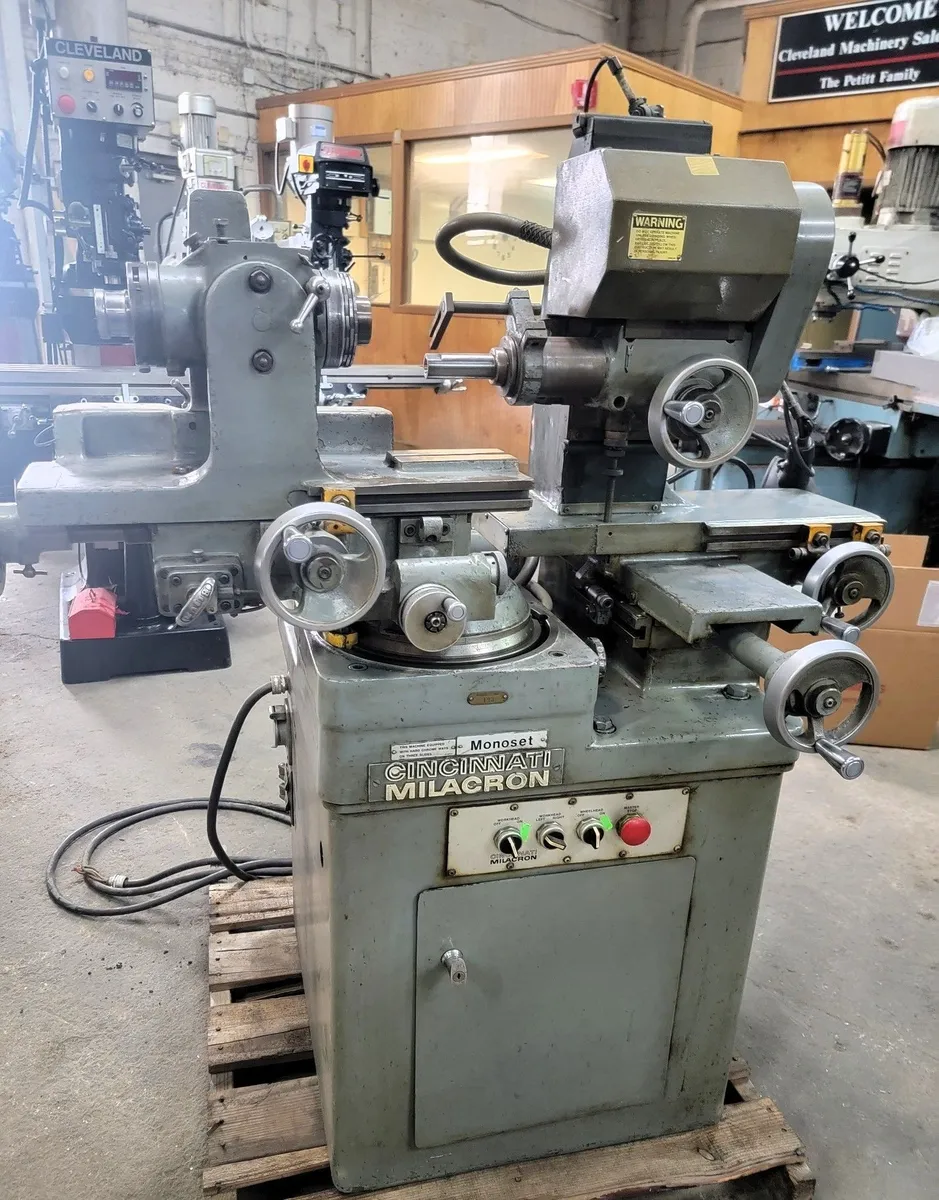

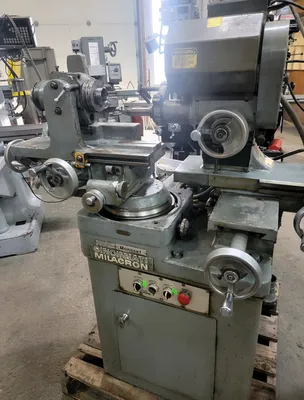

Used CINCINNATI MONOSET MT2 MT | Grinders, Tool & Cutter

Description

CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
MAX. GRINDING WHEEL DIA. .................... 4"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER ............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 5-3/4"
CROSS ....................................... 5-3/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL ....................... 235
ABOVE AND BELOW CENTER ...................... 40
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 6"
CROSS ....................................... 7-1/2"
WHEELHEAD, VERTICAL MOVEMENT:
ABOVE CENTER ................................ 4.5"
BELOW CENTER ................................ 5"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS ..... 4K, 5,730 & 8K RPM
(1) WORKHEAD SPINDLE SPEED ....... 436 RPM
APPROXIMATE WEIGHT ............... 1,500 LBS.
MACHINE FEATURES:
HARD WAYS & SCREWS

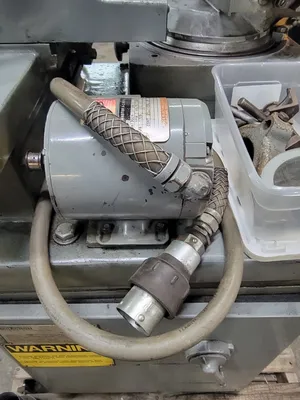

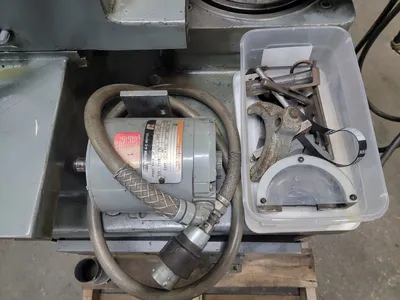

MOTORIZED WORKHEAD
1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
GENERAL CATALOG SPECIFICATIONS MUST BE VERIFIED
