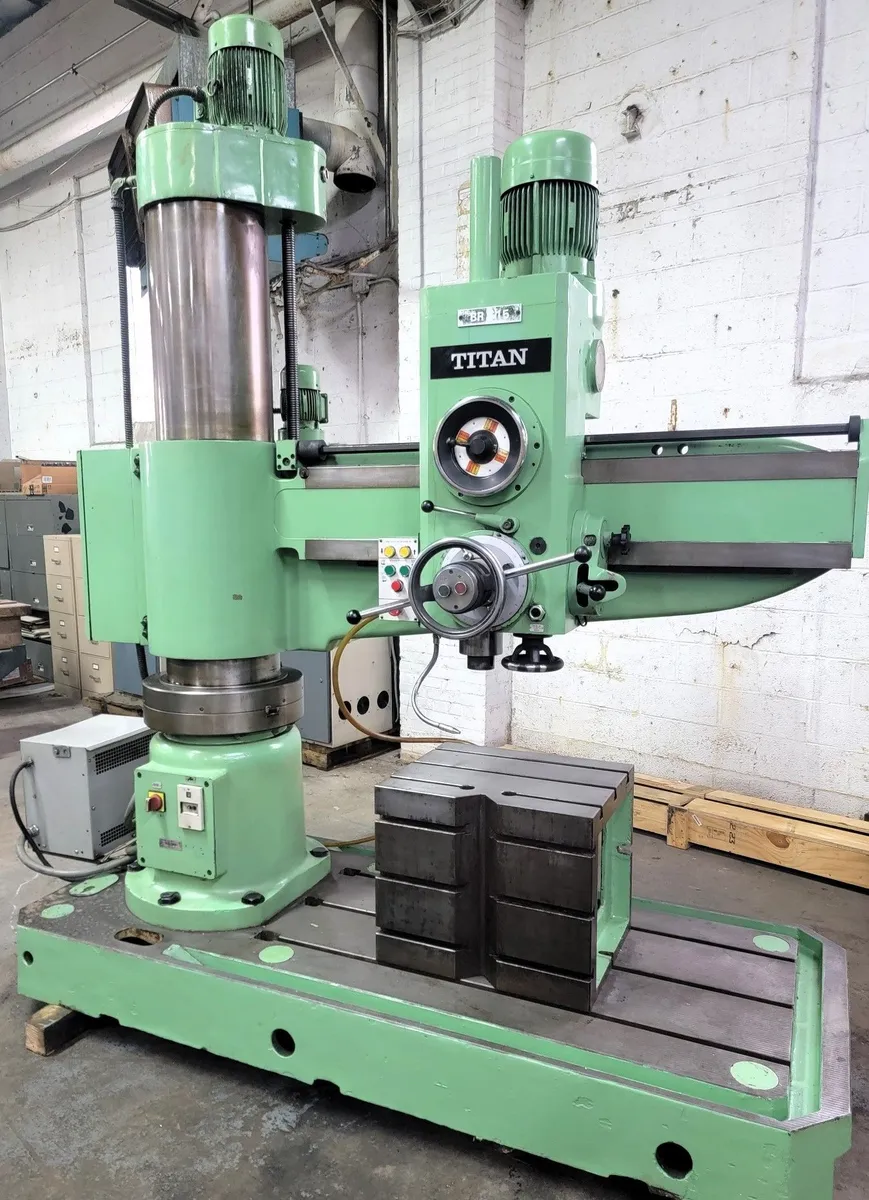

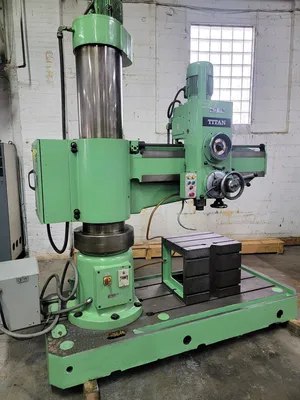

TITAN 4FT ARM X 13"COLUMN RADIAL DRILL, LATE MODEL
Have one to sell?
ConditionUsed
1 available
48" SPINDLE CENTER TO COLUMN FACE 13" DIAMETER COLUMN TITAN RADIAL DRILL
EXCELLENT CONDITION, NO SCORING ON COLUMN OR ARM
56" FROM SPINDLE FACE TO BASE
7.5HP WIRED 220VOLT 3 PHASE
NO 5 MORSE TAPER SPINDLE
SPINDLE DIAMETER 85MM / 3.45 IN.
DRILL CAPACITY 60MM = 2 3/8" IN STEEL, 77MM =3 " CAST
FEED RATES .0071 TO .0394
18 SPINDLE SPEEDS 50 TO 1600 RPM
POWER CLAMPING ON HEAD AND ARM
POWER ELEVATION
COOLANT SYSTEM WITH NOZZEL
PARTS MANUAL
OVERALL SIZE 113" H X 36" W X 108" L (CAN REMOVE ELEVATION MOTOR FOR SHIPPING -12")
APPROX. 8,500 LBS
