NEW CLEVELAND CBV1330 PRECISION VARIABLE SPEED LATHE
Have one to sell?
ConditionNew
1 available
New

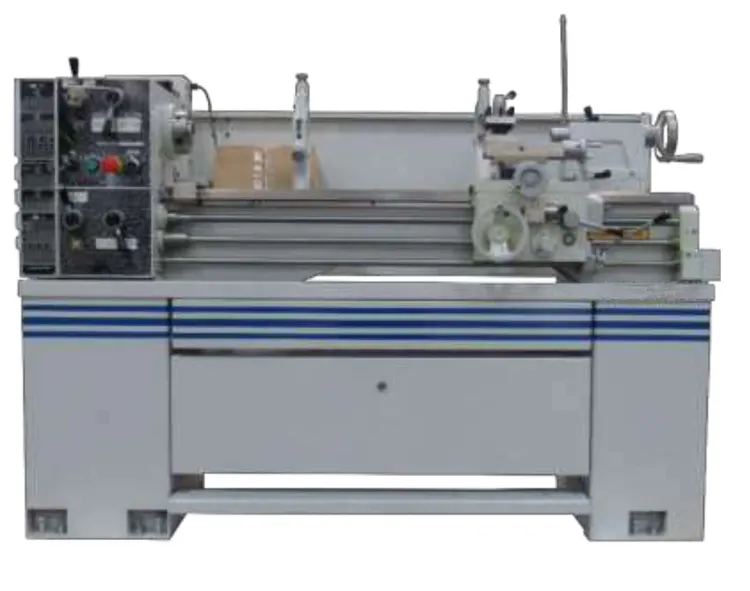

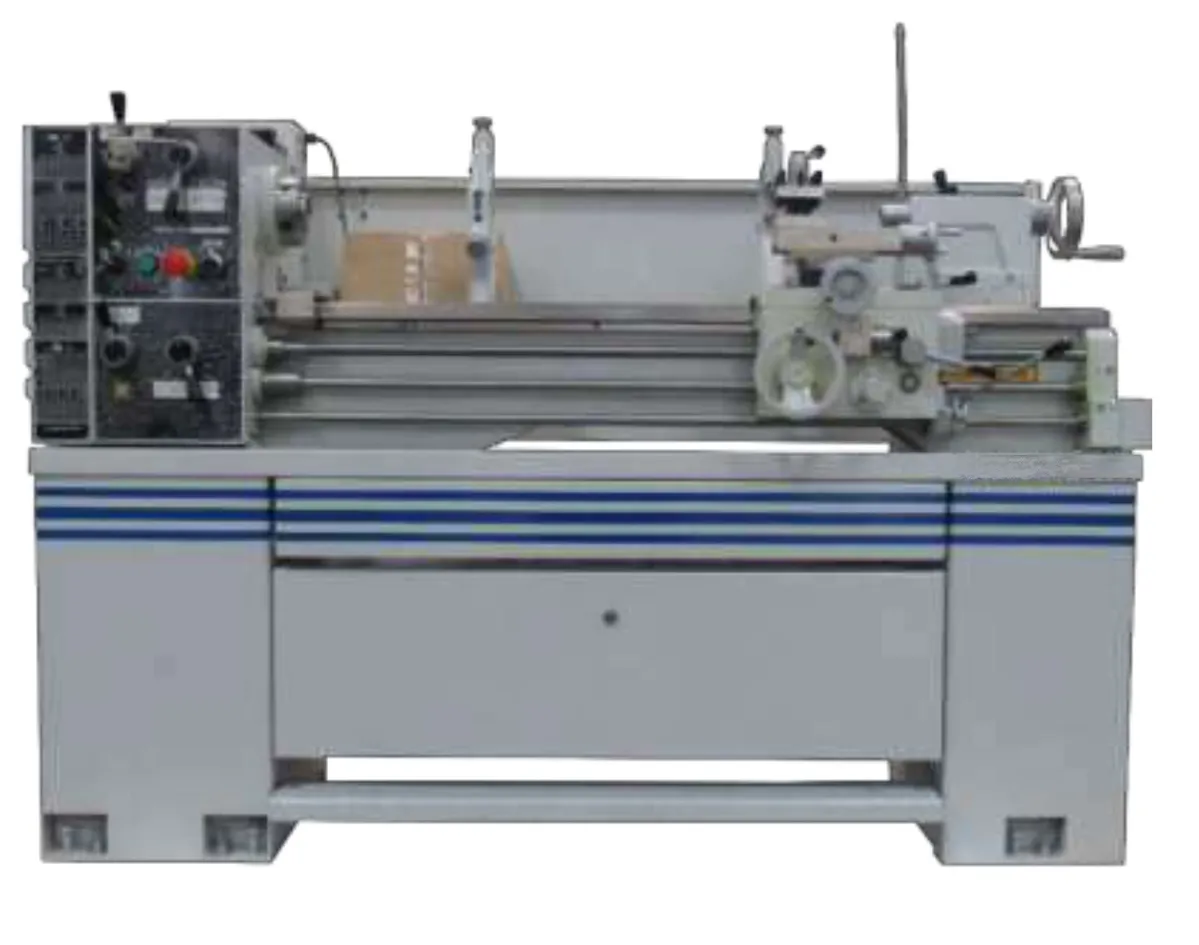

CLEVELAND MODEL CBV1330 PRECISION VARIABLE SPEED LATHE
(CLAUSING TYPE)
PLUS FREIGHT, WEST COAST
*OPTIONAL ACCESSORY PRICES ARE ONLY GOOD WHEN ORDERED WITH THE MACHINE AND SUBJECT TO AVAILABILITY.
**DESIGN, SPECIFICATIONS, PRICE AND COLOR ARE SUBJECT TO CHANGE WITHOUT NOTICE**
SWING OVER BED 13"
DISTANCE BETWEEN CENTERS 40"
SWING OVER CROSS SLIDE 8-1/4"
SWING IN THE GAP 18-1/2"
SPINDLE BORE 1-9/16"
SPINDLE NOSE D1-4
SPINDLE SPEEDS 40-2000 RPM (VARIABLE SPEED)
INCH/METRIC THREADING
MAIN MOTOR 3 HP
VOLTAGE 230V AC/1PH OR 3 PH
STANDARD EQUIMENT:
6" 3 JAW CHUCK
8" 4 JAW CHUCK
STEADY REST
FOLLOW REST
COOLANT SYSTEM
HALOGEN WORK LIGHT
4 WAY TOOL POST
FULL LENGTH SPLASH GUARD
WORK LIGHT
MICRO BED STOP
CHUCK GUARD
