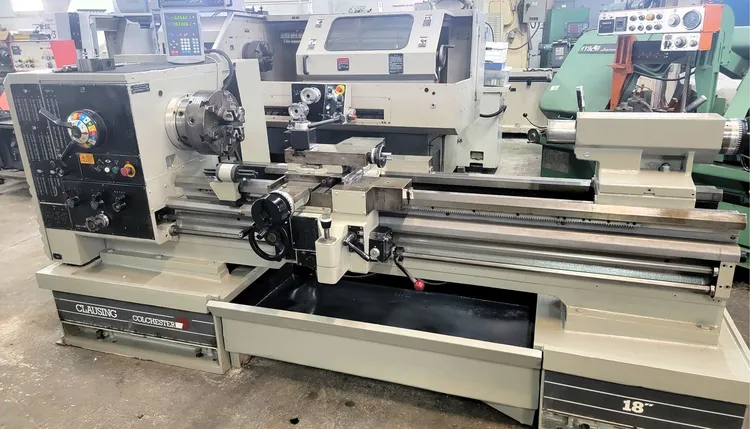

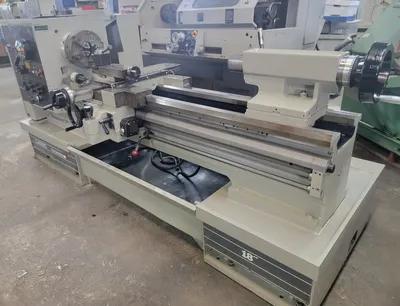

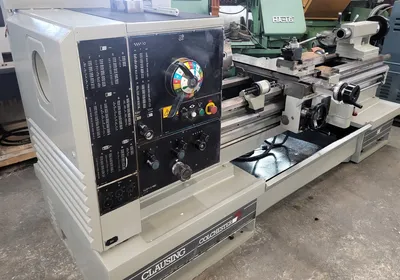

18" x 60" CLAUSING/COLCHESTER LATHE

Description

18" Swing 60" cc Clausing-Colchester ENGINE LATHE
SWING OVER BED ......................... 18"
SWING OVER CROSS SLIDE ................. 10.75"
GAP BED, SWING APROX 32"
DISTANCE BETWEEN CENTERS ............... 60"
HOLE THRU SPINDLE ...................... 3"
SPINDLE NOSE ........................... D1-11" CAMLOCK
SPINDLE SPEEDS GEARED RANGES ...........20-1600 RPM
TAILSTOCK SPINDLE CENTER TAPER ......... #6 MORSE
TAILSTOCK QUILL DIAMETER ...............3 9/16""
TAILSTOCK SPINDLE TRAVEL ............... 6.5"
BED WIDTH ........................15 3/4""
LONGITUDINAL FEED RANGE ................ .0016" - .11" IPR
CROSS FEED RANGE = HALF OF LONGITUDINAL
ENGLISH THREADING RANGE (72) ........... 2 - 84 TPI
METRIC THREADING RANGE (51) ............ .2 - 14 mm
APPROX DIMENSIONS ...................... 122"L x 52"W x 55"H
APPROX WEIGHT .........................6800 LBS

EQUIPPED WITH:
INDUCTION HARDENED & PRECISION GROUND BEDWAYS
COMPREHENSIVE RANGE OF INCH/METRIC THREADS

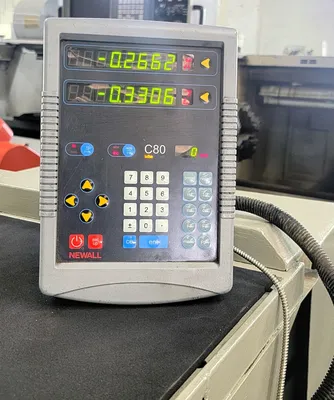

NEWALL TWO AXIS DIGITAL READOUT C80 !

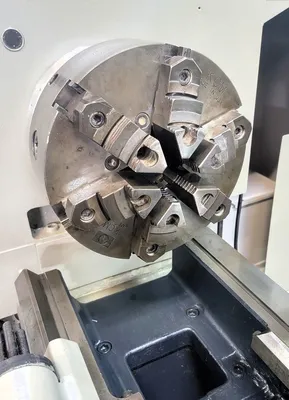

12"diameter 6 JAW SET TRUE BUCK CHUCK!

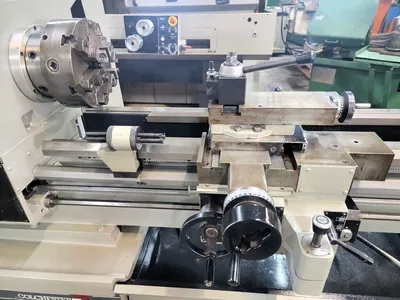

QUICK CHANGE TOOLPOST WITH HOLDERS ALORIS TYPE
THREADING DIAL
TURRET BED STOP
HEAVY DUTY LIVE CENTER WITH REDUCTION SLEEVE FROM NO 6MT!
REMOVABLE CHIP PAN
12.5 HP SPINDLE DRIVE MOTOR WIRED 460 VOLT 3 PHASE
