Used YAMA SEIKI BM-1200 | Machining Center, Vertical, CNC

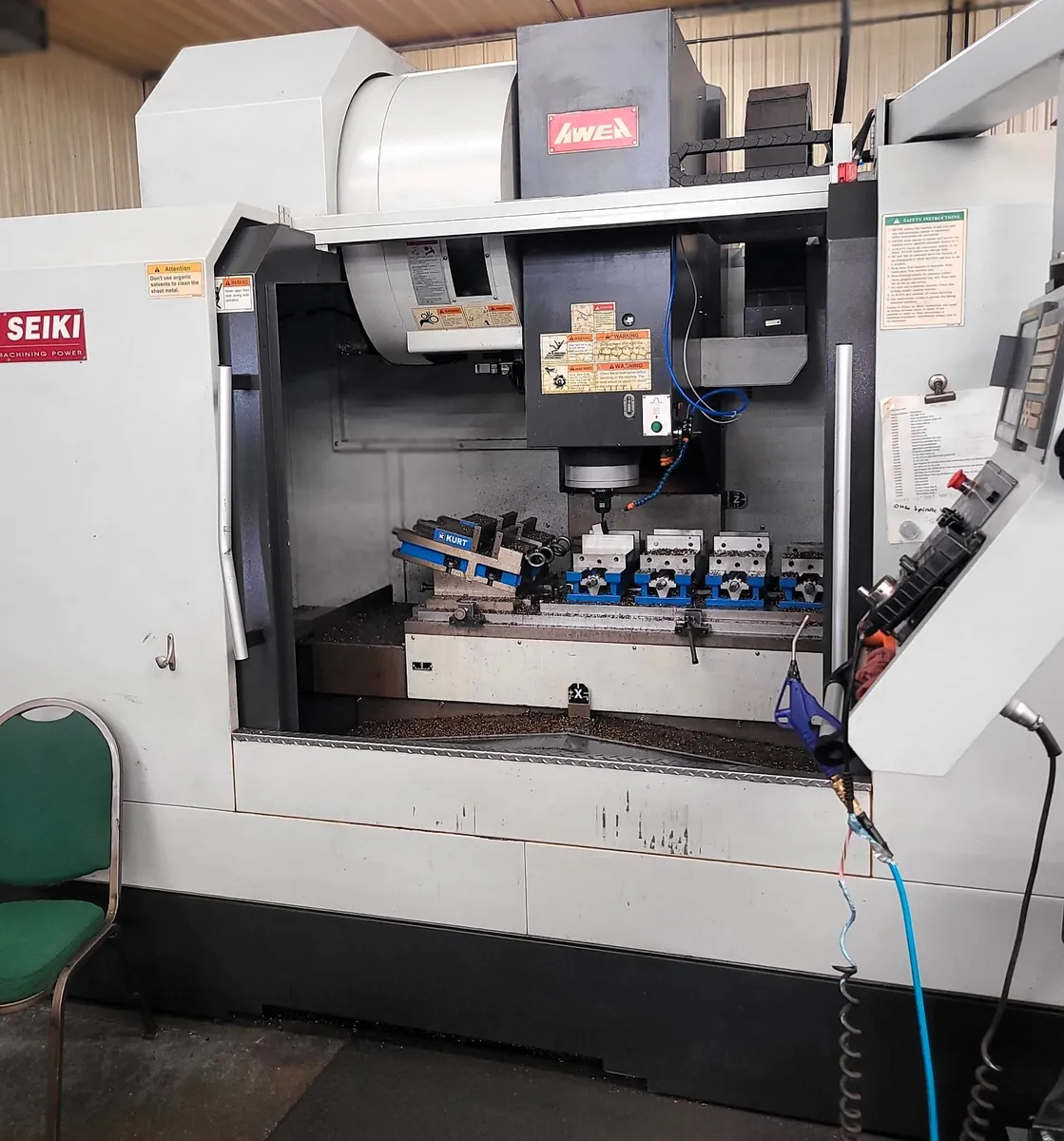

Yama Seiki BM-1200 Vertical Machining Center (2012)

Table Size 51.2” x 23.6”
Table Load Capacity 2650 lbs.
X-Axis Travel 47.2”
Y-Axis Travel 23.6”
Z-Axis Travel 23.6”
Spindle Drive (30 min.) 20 HP
Spindle Speeds (Geared) 65-8000 RPM
Spindle Taper CAT-40
Spindle Nose to Table Distance 4.9” to 28.5”
Distance from Spindle Center to Column 26.80”
X-Y Axis Rapid Traverse Rate 945 IPM
Z-Axis Rapid Traverse Rate 787 IPM
X-Y-Z Axis Feed Rate 1 to 393 IPM
Automatic Tool Changer (Swing Arm Type) 36 Positions
Maximum Tool Weight 17.6 lbs.
Maximum Tool Length 9.8”
Maximum Tool Diameter 3.5”
Maximum Tool Diameter with Adjacent Pockets Empty 5.9”
Electrics 3/60/220V
Approximate Dimensions 134” Length x 87” Width x 107” Height
Approximate Weight 16,500 lbs.

Specifications are approximate and must be verified
