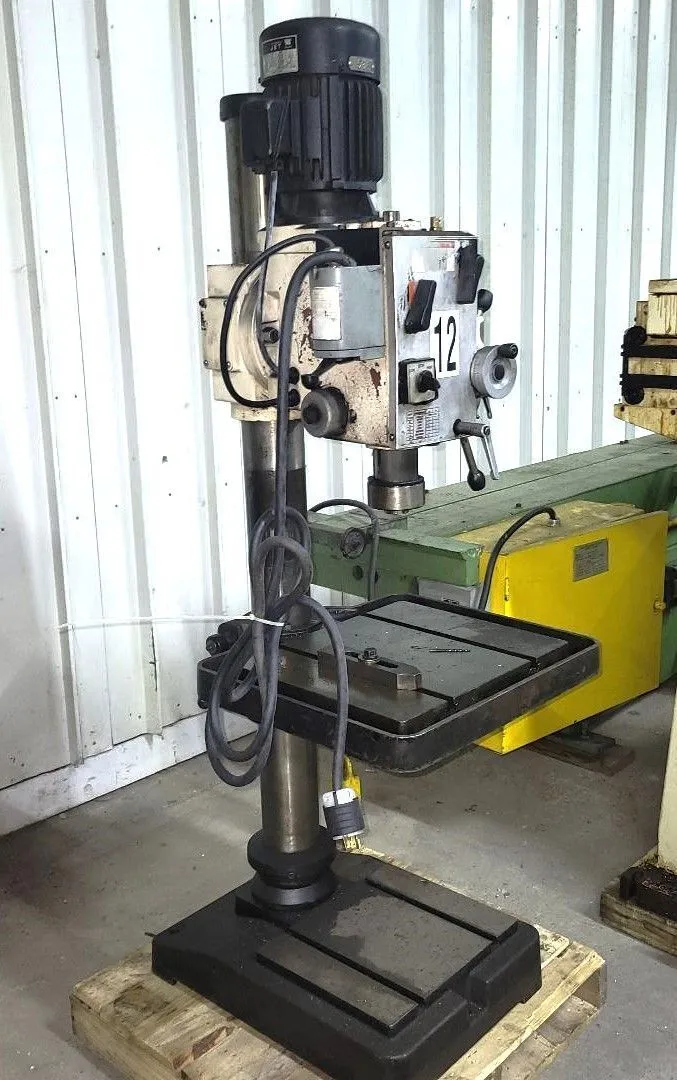

Used JET GHD-20PF | Drills, Single Spindle

Motor 2 HP, 230V only, 3 Ph, 2 Speed
Number of Spindle speeds 12
Range of Spindle Speeds (RPM) Low 60, 130, 230, 450, 800, 500 High 120, 260, 460, 900, 1600, 3000
Spindle Taper MT-3
Quill Diameter (in.) 3
Work Table Weight Capacity (lbs.) 275
Column Diameter (in.) 4-1/2
Drilling Capacity Cast Iron (in.) 1-1/2
Drilling Capacity Mild Steel (in.) 1-1/4
Table Size (in.) 21-1/4 x 18-1/2
Distance Column to Spindle (in.) 10
Drills to Center of Circle (in) 20
Spindle Distance to Base (in.) 44-3/8
Spindle Travel (in.) Manual 4-1/2
Auto 4-1/4
Number of Powerfeeds 3
Spindle Distance to Table (max./in.) 30-7/8
Height 76 inch
Width 29 inch
Length 33 inch
Net Weight 660 pound

Manufacturers specifications, should be verified
