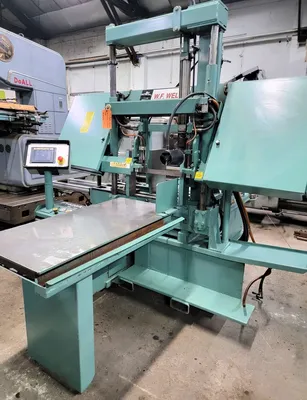

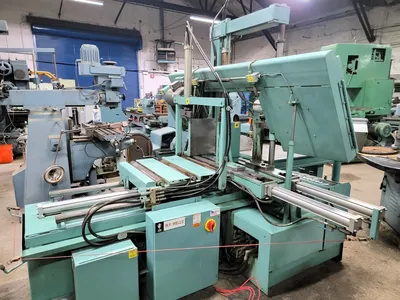

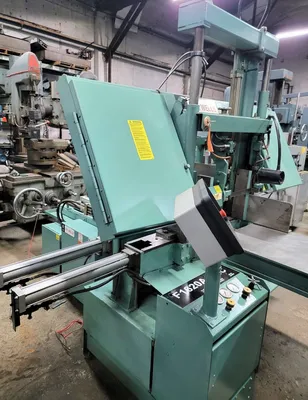

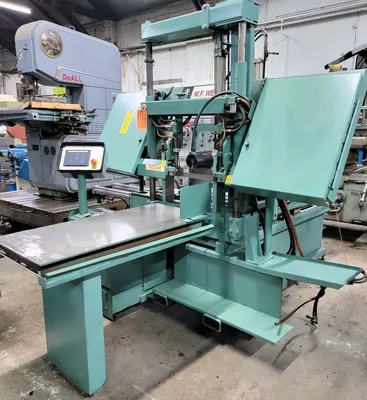

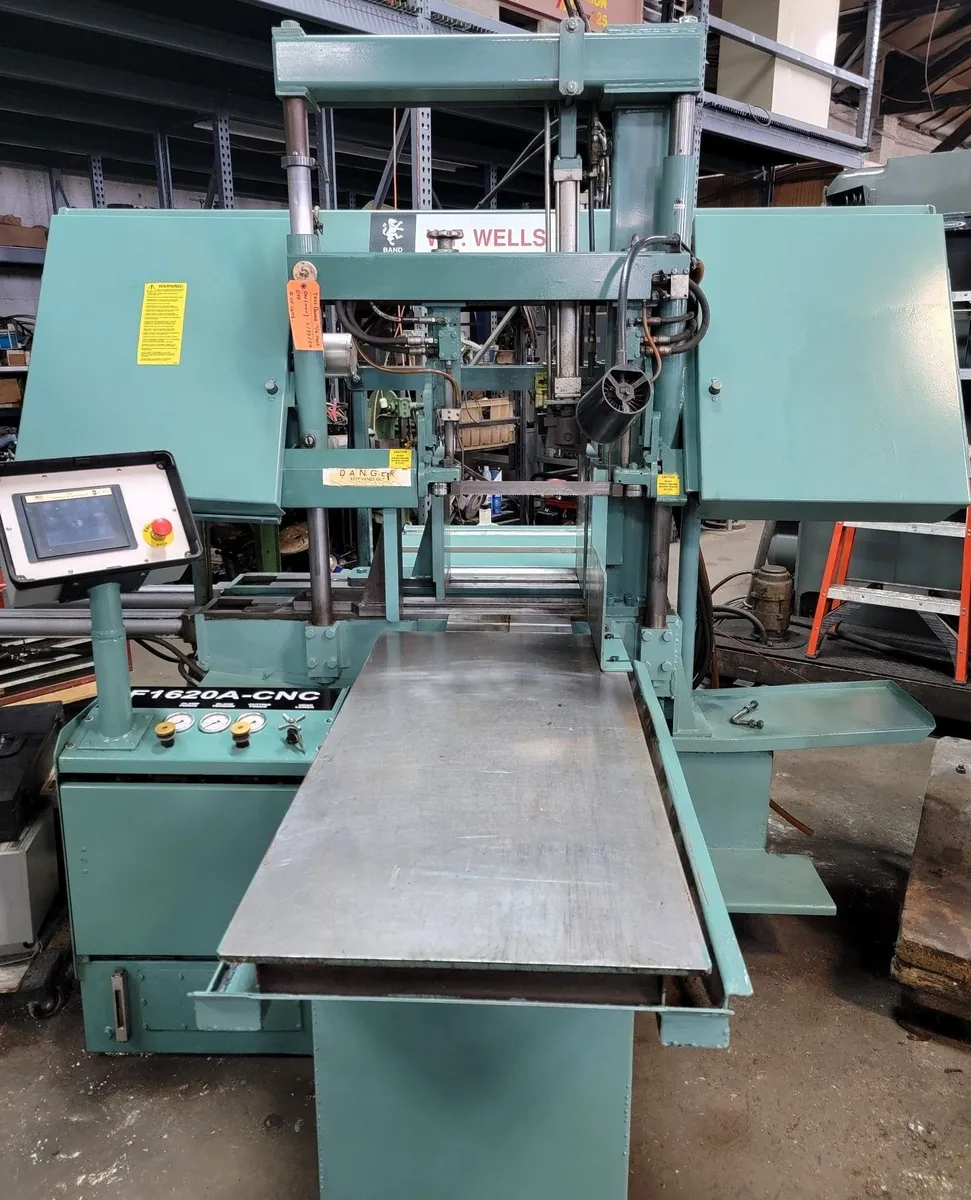

WF WELLS CNC AUTOMATIC BANDSAW

Description

Model: F-1620-A-CNC
Rectangular at 90º 16″ High x 20″ Wide
Round 16″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 15′
Blade Guide: Roller Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke
Sawing Force: 0 - 1,000 lbs.
Bandwheel Size: 20″
Blade Tension: Hydraulic
Blade Drive: 7½ HP
Coolant Capacity: 20 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″

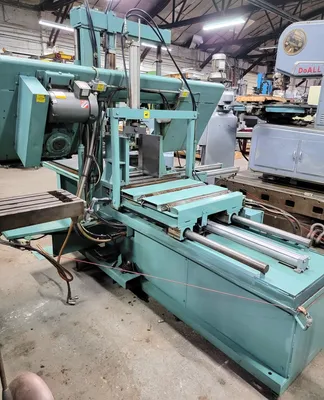

Barfeed Projection: 0 – 25″ CNC Controlled
Shuttle Indexes: Unlimited
Projection Accuracy: +/-.002″
Remnant End: 4″
CNC Programmable Controller with Color Touch Screen
Automatic Kerf Compensation
Blade Break/Stall Switch
Shipping Weight: 4,000 lbs
Machine Dimensions: 104″ Length x 101″ Width x 88″ Height
Machine Wired for 460/60/3

Equipped with the following options:

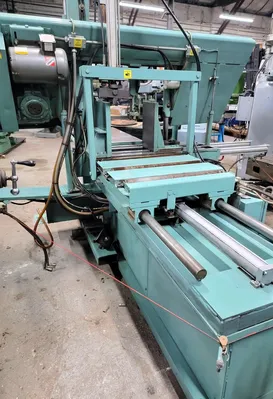

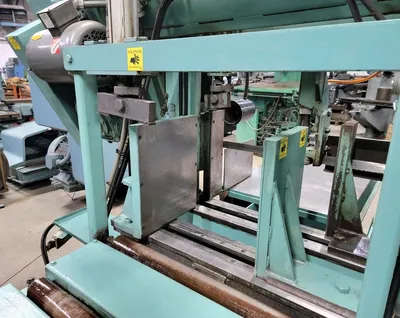

Hydraulic Hold-Down, Saw & Barfeed
Hydraulic Chip Auger
Discharge Table 20" Wide x 48" Long
Work Light (wired in)

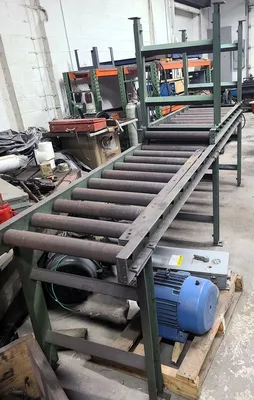

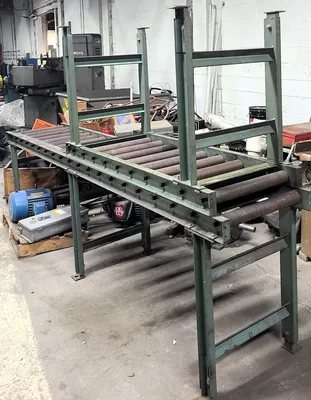

One Non Powered Conveyors 21" wide x 5' long
One Non Powered Conveyors 21" wide x 10' long

general information received must be verified
