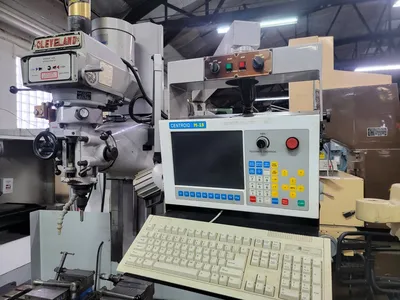

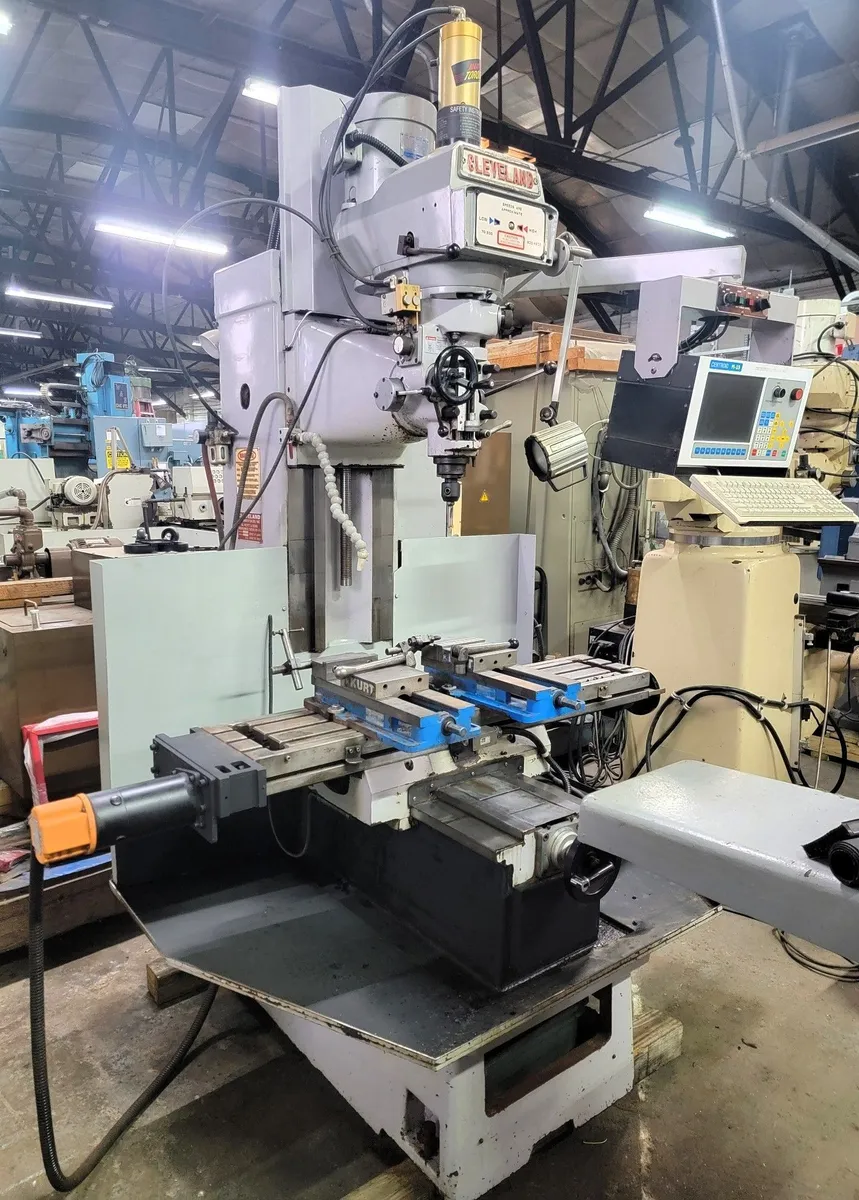

USED CLEVELAND B3VC #30 TOOLROOM CNC BED MILL WITH CENTROID M15 CONTROL
Have one to sell?
ConditionUsed
1 available
CAPACITY:
WORK TABLE: 50" X 10"
T SLOTS SIZE: 3 X 0.63"
TABLE LOAD MAX.: 1,000 LBS.
X, Y & Z TRAVEL, CNC MACHINING: 31.5" X 16" X 20"
SPINDLE NOSE TO TABLE: 3.125" TO 23"
SPINDLE CENTER TO COLUMN: 17"
SPINDLE:
SPINDLE TAPER: NMTB 30
SPINDLE MOTOR: 3PH 220 V 3 HP
SPINDLE SPEED: LOW: 70-500 RPM, HIGH: 600-4000 RPM.
SPINDLE HI/LO GEAR RATIO: 8.4 TO 1
SPINDLE BEARING: CLASS 7 SUPER PRECISION 7210 MATCH SET.
SPINDLE QUILL DIAMETER: 3.937"
X, Y & Z AXIS:
RAPID FEED: 150 IPM
CUTTING FEED: 120 IPM
SLIDE WAY TYPE: HARDENED & GROUND WAYS WITH TURCITE B COATING.
BALLSCREW: 1-1/4" C3 CLASS PRECISION GROUND BALLSCREW AT X & Y AXIS
POSITION ACCURACY: +/- 0.0004"
REPEATABILITY: +/- 0.0002"
GENERAL:
APPROX. WEIGHT: 4,550 LBS.
FLOOR SPACE: 116" X 61" X 89"
COOLANT PUMP: 1/8 HP. 220 VOLTS
COOLANT SUMP CAPACITY: 7 GALLONS
POWER REQUIREMENT: 4 KVA. / 15 AMPS.
MACHINE STANDARD ACCESSORIES:
- SLIDEWAY COVERS (FRONT & BACK)
- TOOLS & TOOL BOX
- ONE SHOT LUBE SYSTEM
- SAFETY HANDWHEELS
- QUILL HANDLE
- OPERATION/PARTS MANUAL
CONTROL STANDARD ACCESSORIES:
- CUTTER RADIUS COMPENSATION
- CANNED CYCLES (LINES, ARCS, FRAMES, THREAD MILLING,
FACING, RECTANGULAR & CIRCULAR POCKET
- CAD/CAM READY
- G-CODE BACKPLOT
- CANNED DRILLING CYCLES
- G-CODE TOOL PATH GRAPHICS
- PREDEFINED M CODES
- SPINDLE S FUNCTION; PROGRAMMABLE SPINDLE SPEED
- 200 TOOL LIBRARY (LENGTH & RADIUS COMP.)
- PART PROGRAM STORAGE AND EDITING
- OPERATION MANUAL & TRAINING VIDEO TAPE
SEE NEW LIST PRICE SHEET FOR OPTIONAL ACCESSORIES
* INCLUDES OPTIONAL POWER DRAW BAR
CONTROL COMPUTER FEATURES
• 32 bit PC Based DSP technology
• Updateable software
• High-speed block process speed
• Internal hard drive
• Digital servo drives and motors
• Alphanumeric keyboard (splash-proof)
• VGA LCD display
• USB, mouse, & parallel ports
AXIS CONTROL:
• High-speed 3D contouring
• 3-Axis simultaneous control
• 640kb standard program size (unlimited part
program size optional
• CAD/CAM ready
• Least input increment of .0001” (.001mm)
• Emergency stop
• Hold tolerances even on high-speed moves
• Backlash compensation
• Lead screw compensation
OPERATION:
• Icon and Soft Key-based operating system
• MDI
• Run mode
• Single block mode
• Manual feed mode (jog) incremental or continuous feed
• Manual pulse generator (MPG optional)
• Sequence and N number search
• Program restart with Smart search
INTERPOLATION:
• Positioning [G0]
• Linear interpolation (3 or 4-axis simultaneously) [G1]
• Circular interpolation (any plane) [G2&3]
• Helical interpolation (any plane) [G2&3]
• Dwell [G4]
PROGRAMMING:
• Conversational Programming
• EIA FANUC™ style G-codes
• 3D toolpath graphics (G-code backplot)
• Program number = DOS legal file name
• Sequence number N with 9 digits
• Absolute / Incremental programming [G90&91]
• Inch /metric conversion [G20&21]
• Circular interpolation planes [G17-19]
• Coordinate system setting [G92]
• Specifying the radius of an arc (R value)
• Data setting [G10]
• Canned drilling cycles [G73,80,81,82,83,85,89]
• Work coordinate system options:
[G28] Reference Point Return
[G29] Return from Reference Point
[G30] 2nd Reference Point Return
[G52] Local Coordinate System
[G53] Machine Coordinate System
GRAPHICAL G-CODE EDITING:
• Full 3D graphics (isometric and tri-planar)
• Pocket cycles (circular and rectangular)
• Frame mill cycle (circular and rectangular)
• Ramped plunges on canned cycles
• Position, line, arc events
• Automatic corner radius
• Subroutines for copy, repeat, rotate, mirror; with nesting
• Drilling cycles
• Tapping cycles
• Bolt hole circles
• Boring cycles
• Automatic angle calculator
• Graphical Math Help for solving angles, intersections, tangents; with
paste to event
• Linear and polar values on same event
• Run time estimate
