Used 1994 MARVEL 13-A2 HORIZ BANDSAW | SAWS, BAND, HORIZONTAL, AUTOMATIC

Description

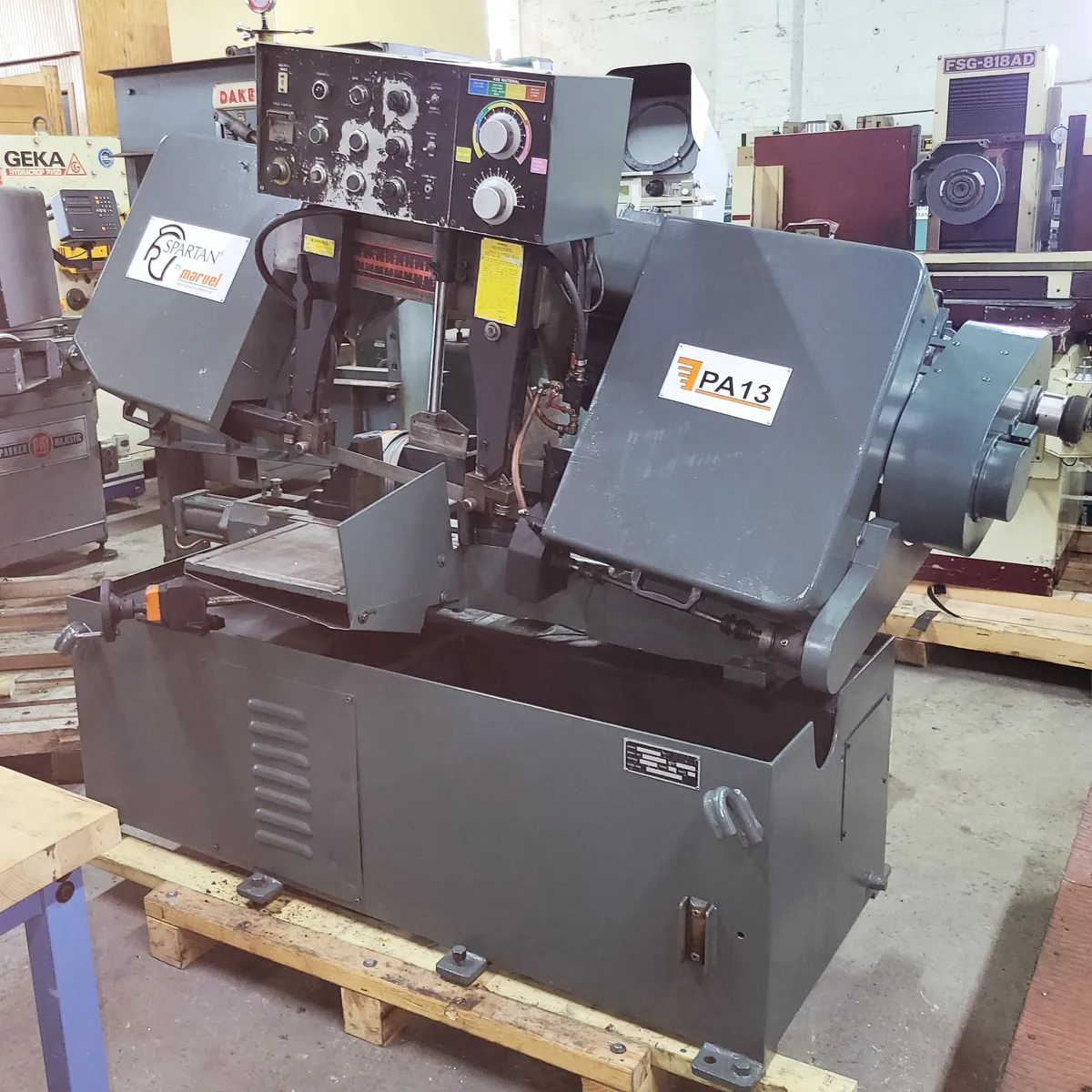

13" X 14" MARVEL MODEL PA13/2 HORIZONTAL AUTOMATIC BANDSAW:
SERIAL ....................... EPA130535
MODEL ........................ PA13/2
YEAR NEW ..................... 1999
CAPACITY RECTANGLES .......... 13" X 14"
CAPACITY (ROUND) ............. 13"
BLADE DIMENSION .............. 150" X 1-1/4" X .042"
BLADE SPEED (VARIABLE) ....... 80 TO 400 SFPM WITH LED BLADE SPEED INDICATOR
FEED FORCE (VARIABLE) ........ 0 TO 300 LBS
AUTOMATIC BAR FEED ........... 24" MAXIMUM
INDEXING CYCLES .............. 9
BUNDLE CUTTING (NESTING) ..... YES
HYDRAULIC BLADE TENSION ...... YES
LOAD CAPACITY ................ 6,250 LBS.
FLOOR TO TOP OF TABLE ........ 27-1/2"
PIECE COUNTER ................ YES
HYDRAULIC DRIVE MOTOR .
BLADE DRIVE MOTOR ............ 5 HORSEPOWER
COOLANT PUMP ................. 1/8 HORSEPOWER
WIRED 440 VOLT 3 PH
