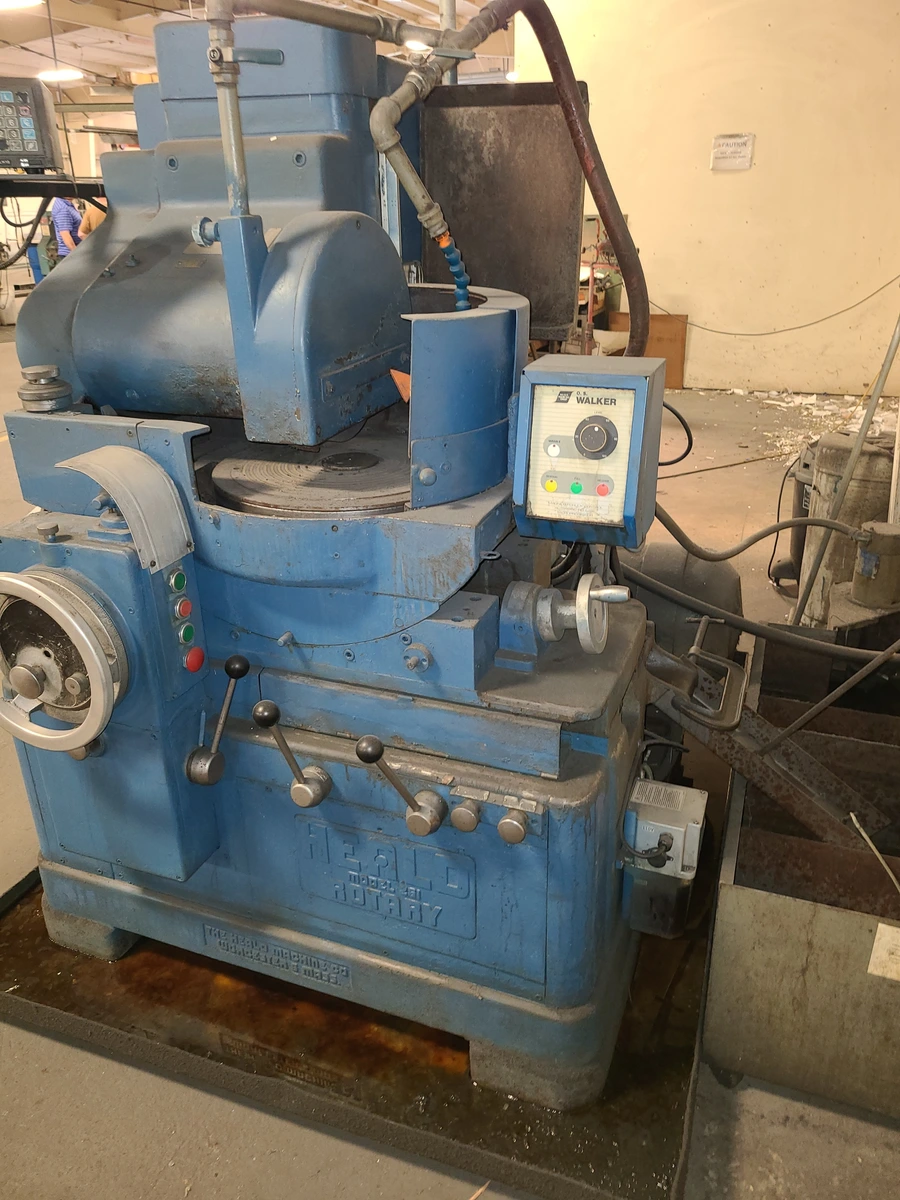

HEALD 261 HORIZONTAL SPINDLE ROTARY SURFACE GRINDER

Description

USED HEALD 261 HORIZONTAL SPINDLE ROTARY SURFACE GRINDER

Manufacturer: Heald
Model: 261

Equipped With:
16" Electro Magnetic With Controller, Table Tilt for Concave and Convex
Grinding, Automatic Cross Feed, Automatic and Manual Down Feed Feeds.

CATALOGUE SPECIFICATIONS: MUST BE VERIFIED
Magnetic Chuck, Holding Diameter................... 16"
Swing Inside Coolant Guards........................ 21"
Vertical Capacity Under New Wheel.................. 10-1/2"
Vertical Capacity Under Worn Wheel................. 13"
Max Grinding Stroke................................ 11"
Table Travel Max (Not Grinding).................... 12"
Table Travel Max (17 Deg Chuck Swivel)............. 9-5/8"
Maximum Convex Table Angle......................... 17 Degrees
Maximum Concave Table Angle........................ 10 Degrees
Standard Wheel Size................................ 14" x 1" x 5"
Grinding Wheel Speed............................... 1680 RPM
Chuck Speeds, Range................................ 50 to 225 RPM
Table Speeds for Grinding.......................... 0 to 12 FPM
Power Feed Adjustment.............................. .0001" to .0006"
Spindle Motor...................................... 15 HP
Electrical System (Wired 440)...................... 220/440/3/60
Approximate Machine Dimensions..................... 56-3/4" x 67"
Approximate Machine Height......................... 80-1/2"
Approximate Machine Weight......................... 10,350 LBS
Digital Readout
