TARNOW TUJ 50 M 22 " x 120" | Lathes, Engine

Description

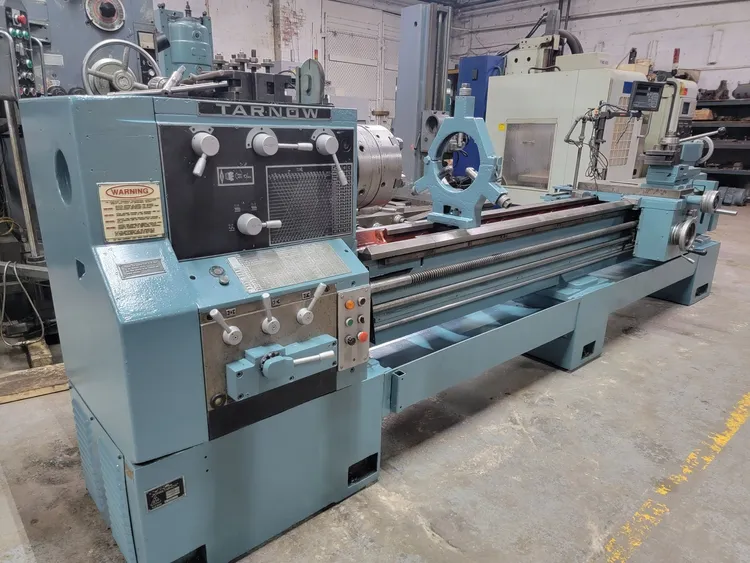

USED TARNOW 22 " x 120" TUJ 50M LATHE
Year: 1985
Condition: VERY GOOD
Swing Over Bed 22" (559mm)
Swing Over Removable Gap 31-1/2" (800mm)
Swing Over Cross Slide 14-1/2" (368mm)
Distance Between Centers 120" (4.32M)
Length of Gap 11.25"
Spindle Speeds (18) 20 - 1600 RPM
Feeds - Longitudinal (98) .0007" - .720" / Rev.
- Cross (98) .0004" - .360" / Rev.
Threads - Inch (70) 1/4 - 56 TPI
- Metric (59) 0.5 - 112 TPmm
Spindle Hole Diameter 3-1/2"
Spindle Nose D1 - 11" Camlock
Approximate Dimensions 184" x 54" x 54" H
Main Motor 15 HP, 3-Phase, 60 Cycle
Dual Voltage 220/440 V 3 ph wired 440 at this time

12" Diameter BTC 6-Jaw Chuck. !!

18" 4-Jaw Chuck,
Taper Attachment.
10" Diameter Roller Bearing Steady Rest..
Live Center,
Threading Dial.
Hardened and Ground Bed Ways
.Chip Pans.
Coolant system

WITH NEWALL DIGITAL READOUT SYSTEM!!
