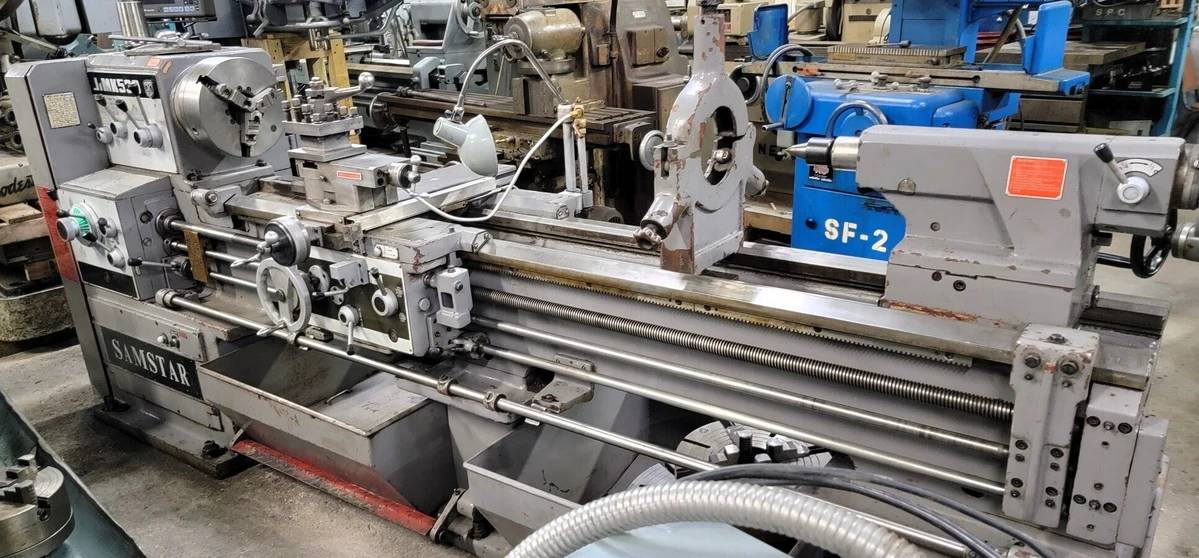

Good SAMSTAR 21" Swing x 80" Centers Mazak Style Lathe | Lathes, Engine

Description

21" swing x 80" centers MAZAK STYLE JIMK530
WITH MITUTOYO DIGITAL READOUTS
21" Swing over bed
13 1/8" Swing over cross slide
28 1/8" Swing in gap
3 1/8" Spindle bore
44 1/8" Height from floor to work center
Length of gap 11 1/4"
Spindle Nose - Camlock D1-8 amlode
12 Speed Changes
25-1500 RPM
Threading range: 0.5mm - 7.0mm pitch; 4-56 TPI; 0.5-7. 0M; 28-4DP
Tailstock Spindle Diameter - 2 9/16" (65mm)
Spindle Travel - 6 5/16" (160mm)
Center - Morse Taper No. 4
Cross Slide Travel - 10 5/8"
Width of Bed - 14 1/2"
Main Motor 10HP
Net Weight 5732 lbs (2600kg)
12" 3 Jaw Scroll Chuck
12" 4 Jaw Independent Chuck
Steady Rest
Follow Rest
Micrometric Carriage Stop
