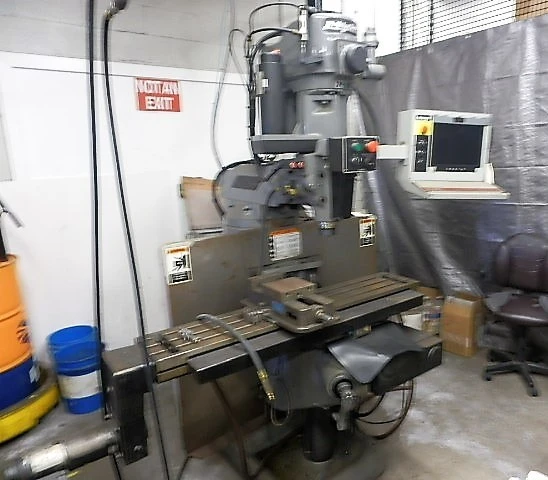

USED BRIDGEPORT V2XT CNC VERTICAL MILL

3- Axis CNC Bridgeport Model V2XT
Control : Bridgeport DX-32 PC Based CNC Control

General Specifications:
X Axis Travel: 30"
Y Axis Travel: 12"
Z Axis (Quill) Travel: 5"
Knee Travel: 14.5"
Table Size: 9" x 48"
Head Tilt: +/- 90 Degrees
Spindle Speeds: 60-4,200 RPM
Spindle Taper: #30 With Bridgeport Power Draw Bar
Spindle Motor: 2 HP dual voltage 220/440
wired 480 v 3ph at this time

Equipped With:
10 Misc. Toolholders with stand includes Collet Holders, Drill Chuck, End Mill Holders, Face Mill Holders
Auto Lubrication System
All Related Manuals
Machine Dimensions: 72"L x 60"W x 92"H
Machine Weight: 3,000 lbs

Purchased in Plant Running
