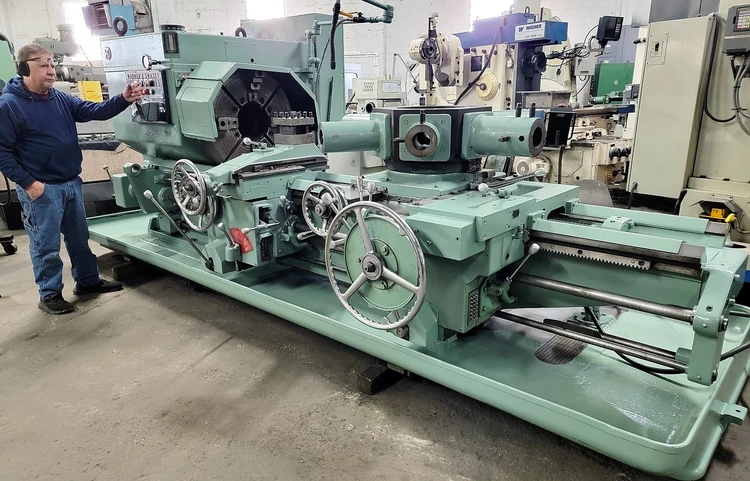

USED WARNER & SWASEY 4A TURRET LATHE 9-1/4" LOW HOURS

Model M3550 Lot 49 Hole thru spindle 9-1/4"
ONLY 587 HRS ON HOUR METER
Square head w/hydraulic preselector
28" 4 Jaw Bison Chuck with 2 piece jaws and hard top jaws
Rapid traverse both aprons
Maximum swing over ways 28-1/4"
Maximum swing over carriage 22-7/16"
Maximum distance from spindle to turret face 80"
Reverse feed both aprons
(32) Spindle Speeds 10 to 526 RPM
Open type flat seat square turret toolpost
Longitudinal feed dials on both aprons
Coolant pump & piping
Way covers & guards
Approximate weight: 22,000 lbs.
30 / 60 HP Main Motor
440 volt 3 ph
CROSS SLIDING 6 SIDEDTURRET
TURRET FEEDS ....................... (16) .005 TO .167 IPR
CROSS SLIDE FEEDS .................. (16) .002 TO .077 IPR
FLANGE HOLDERS ..................... 5
Overall Dim. approx. 7' F-B x 17' L-R x 6 1/2' H

CAME OUT OF SERVICE, CAN BE SEEN UNDER POWER ON OUR FLOOR

VIDEO: https://youtu.be/_Ry6o8LA8Mg
