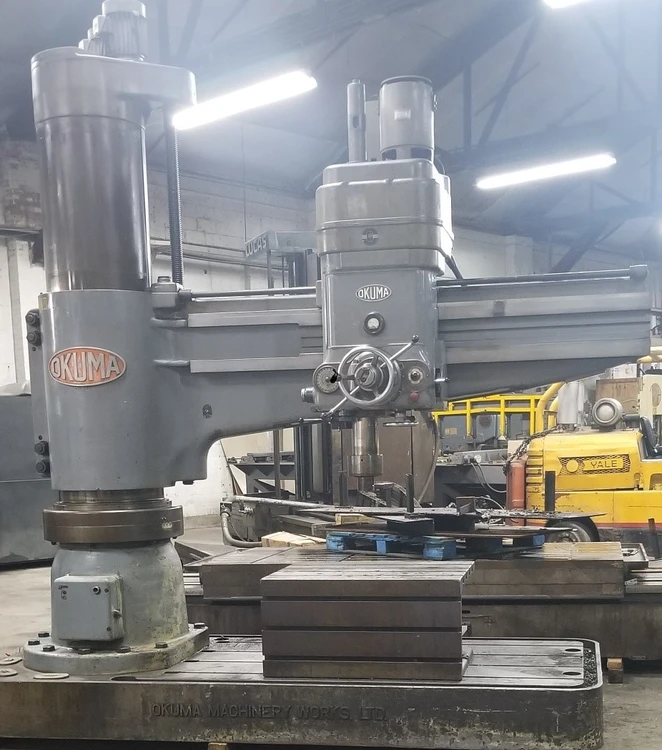

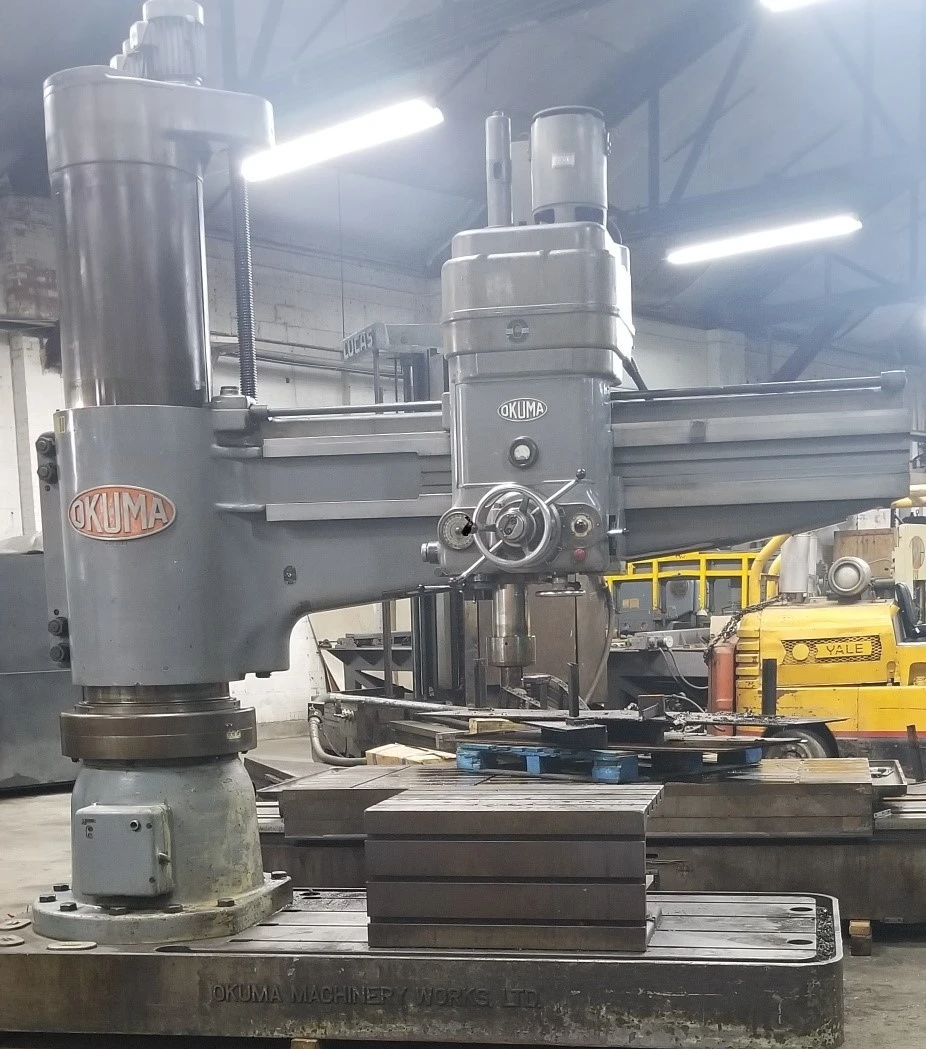

USED OKUMA 7' ARM 22" DIA COLUMN RADIAL DRILL
Have one to sell?
ConditionUsed
1 available
*SPECIFICATIONS WERE TAKEN FROM MANUFACTURERS INFORMATION AND SHOULD BE VERIFIED.
MAXIMUM DIAMETER DRILLED 3" Steel - 3 1/2 Cast at 90 RP
DISTANCE BETWEEN COLUMN & SPINDLE 78.7"
DISTANCE FROM SPINDLE TO BASE 74" Max
TAPER IN SPINDLE (MORSE) #5
QUILL DIAMETER 5" w/7" Bearing Supp/tool end
SPINDLE TRAVEL 17"
SPINDLE SPEEDS (16 CHANGES) 18 to 2240 RPM
SPINDLE FEEDS (18 FEEDS) .001 - .050
DIAMETER OF COLUMN 22"
LENGTH OF ARM Overall
BOX TABLE SIZE 39 1/2" x29 1/2" x 19 1/2"
MAIN MOTOR 7.5 Kw - 10HP
APROXIMATE OVERALL DIMENSIONS 146" x 130" x52"
NET APPROXIMATE WEIGHT Approx. 25,400 lbs.
BOX TABLE 39 1/2" x 29 1/2" x 19 1/2"
WORK LIGHT
COOLANT SYSTEM
POWER ELEVATION
POWER CLAMPING ON COLUMN
TOOL EJECT ON SPINDLE
MACHINE WIRED 440V/3 PHASE
MANUALS
ON MY SHOWROOM FLOOR CAN BE SEEN UNDER POWER !
