NEW CLEVELAND CLD1440 PRECISION LATHE
Have one to sell?
ConditionNew
1 available
New

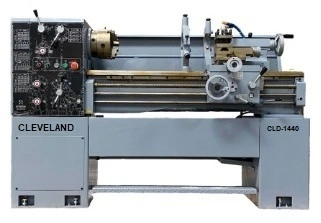

CLEVELAND MODEL CLD-1440 PRECISION LATHE
PLUS FREIGHT, WEST COAST
OPTIONS ACCESSORIES:
CHUCK GUARD WITH SAFETY SWITCH
NEWALL DIGITAL READOUT SYSTEM DP700 2 AXIS D.R.O.
*OPTIONAL ACCESSORY PRICES ARE ONLY GOOD WHEN ORDERED WITH THE MACHINE AND SUBJECT TO AVAILABILITY.
**DESIGN, SPECIFICATIONS, PRICE AND COLOR ARE SUBJECT TO CHANGE WITHOUT NOTICE**
SWING OVER BED 14"
DISTANCE BETWEEN CENTERS 39.3"
SWING OVER CROSS SLIDE 8-3/4"
SWING IN THE GAP 20-3/4"
SPINDLE BORE 1-1/2"
SPINDLE NOSE D1-4
SPINDLE SPEEDS (9 CHANGES) 82-2000 RPM
INCH THREADS (36 CHANGES) 3-56 TPI
METRIC THREADS (34 CHANGES) 0.4-7.2 MM
LONGITUDINAL FEED 0.0026-0.0368 IPR
CROSS FEED 0.0013-0.0184 IPR
TAILSTOCK QUILL TRAVEL 4"
TAILSTOCK QUILL TAPER MT #3
MAIN MOTOR 2 HP
VOLTAGE 230V OR 440V/3 PH
MACHINE WEIGHT 1,364 LBS.
STANDARD EQUIMENT:
GAP BED
6" 3 JAW SCROLL CHUCK
8" 4 JAW INDEPENDENT CHUCK
6" & 8" BACK PLATES (D1-4)
CENTER SLEEVE MT5xMT3 & CENTERS
CHANGE GEARS
STEADY REST
FOLLOW REST
COOLANT SYSTEM
4 WAY TOOL POST
FOOT BRAKE
1/8HP COOLANT PUMP EQUIPMENT
FLOOR STAND
3HP MAIN DRIVE MOTOR
COMPLETE ELECTRIC CONTROL UNIT
TOOL BOX & KITS
MACHINE WIRED FOR 220 VOLTS/3 PHASE
