| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Dia. | 8" | 203.2 mm |

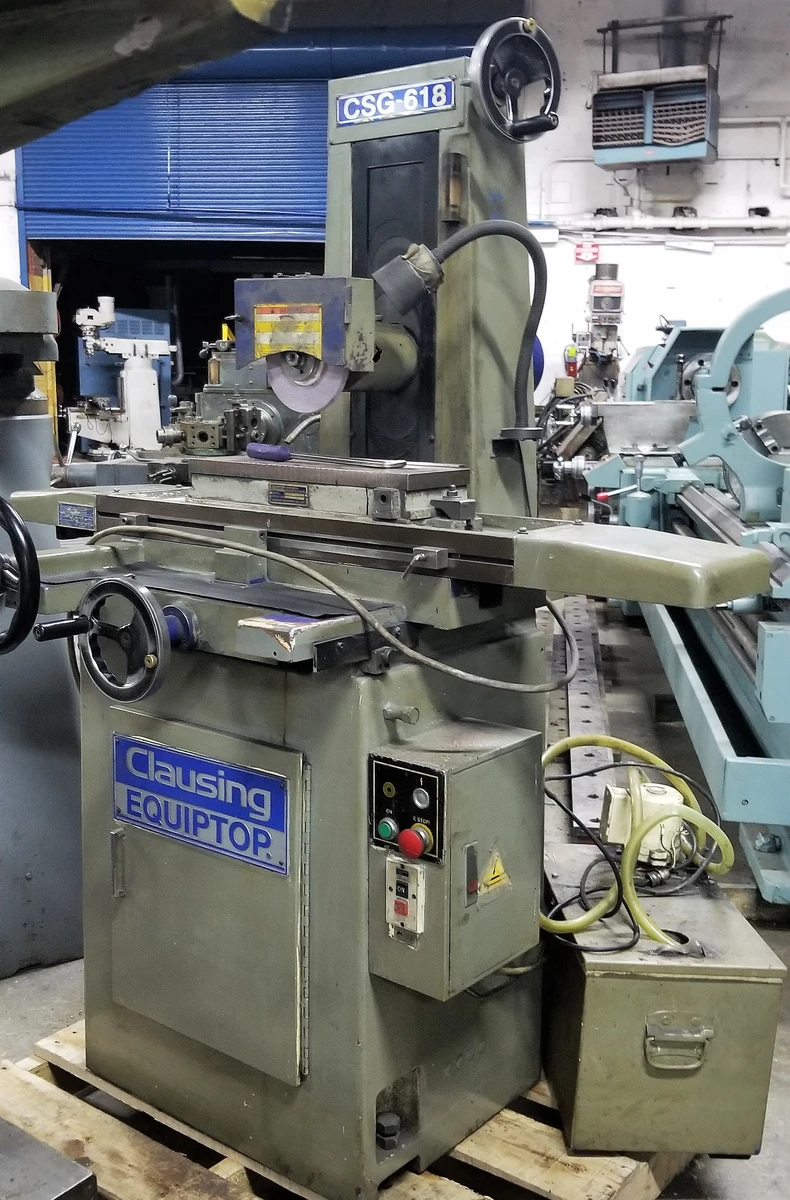

6" X 18" CAPACITY
6-3/4" CROSS TRAVEL
18-3/4" LONGITUDINAL TRAVEL
.0001" GRADUATIONS ON ELEVATION WHEEL/ WITH FINE FEED DIAL
.0005" GRADUATIONS ON CROSSFEED WHEEL
DOUBLE V SADDLE WAYS
SMOOTH BELT DRIVEN TABLE
8" GRINDING WHEEL CAPACITY
15-1/2" MAX. CENTER OF SPINDLE TO TOP OF TABLE
6" X 18" PERM MAG CHUCK
WORK LIGHT
2 HP / 3450 RPM MOTOR 220/440/3ph
46" X 69" OPERATING DIMENSIONS
46" X 46"X 77" H OVERALL DIMENSIONS
COOLANT TANK SYSTEM
This equipment has been sold. Similar equipment available now is shown below.
