NEW CLEVELAND CTE1640 PRECISION GEARED HEAD LATHE
Have one to sell?
ConditionNew
1 available
New

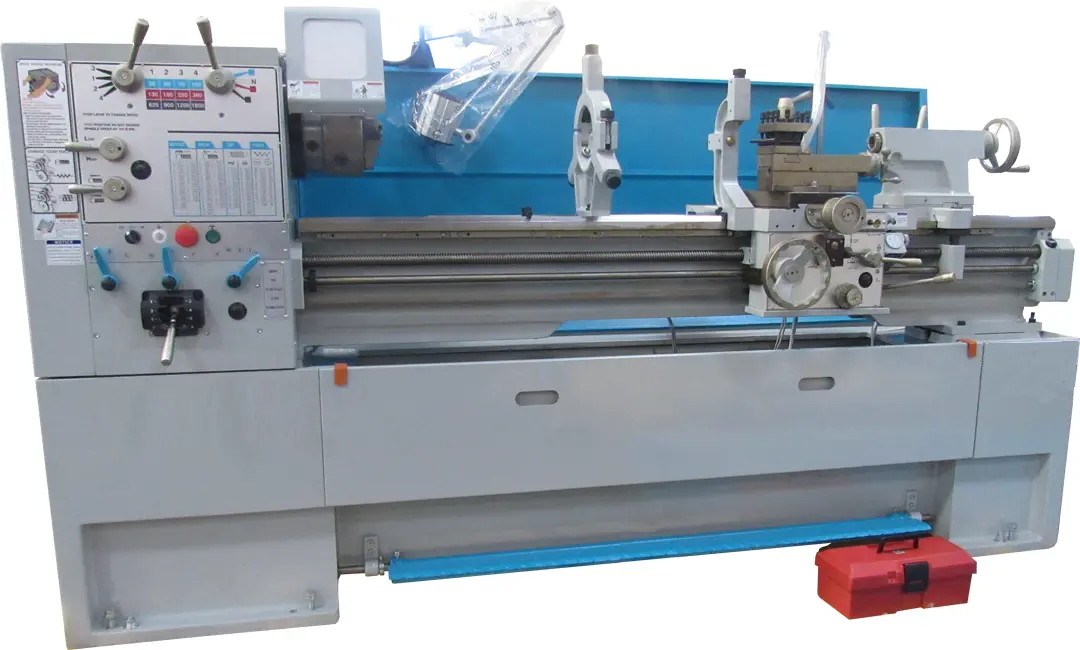

CLEVELAND MODEL CTE1640 PRECISION GEARED HEAD LATHE
PLUS FREIGHT, WEST COAST
AVAILABLE OPTIONAL ACCESSORIES:
FACE PLATE
MICRO BED STOP
TAPER ATTACHMENT (INSTALLED)
JFK LEVER TYPE COLLET CLOSER
IMPORT COLLET CLOSER
NEWALL DIGITAL READOUT SYSTEM DP700 2 AXIS
NEWALL DIGITAL READOUT SYSTEM NMS300 2 AXIS
2 AXIS D.R.O. INSTALLATION (INSTALLED OUR WAREHOUSE)
ALORIS QUICK CHANGE TOOL POST 5 PC SET (CXA)
IMPORT QUICK CHANGE TOOL HOLDER
*OPTIONAL ACCESSORY PRICES ARE ONLY GOOD WHEN ORDERED WITH THE MACHINE AND SUBJECT TO AVAILABILITY.
**DESIGN, SPECIFICATIONS, PRICE AND COLOR ARE SUBJECT TO CHANGE WITHOUT NOTICE**
SWING OVER BED 16-3/16"
DISTANCE BETWEEN CENTERS 40"
SWING OVER CROSS SLIDE 10-3/8"
SWING IN THE GAP 23"
SPINDLE BORE 2-1/16"
SPINDLE NOSE D1-6
SPINDLE SPEEDS (12 CHANGES) 36-1800 RPM
INCH THREADS (45 CHANGES) 2-72 TPI
METRIC THREADS (39 CHANGES) 0.2-14 PITCH
MODULE THREADS (18 CHANGES) 0.3-3.5
DIAMETRICAL THREADS (21 CHANGES) 8-44
LONGITUDINAL FEED 0.002-0.067 IPR
CROSS FEED 0.001-0.034 IPR
TAILSTOCK QUILL DIAMETER 2"
TAILSTOCK QUILL TRAVEL 6"
TAILSTOCK QUILL TAPER MT #4
MAIN MOTOR 5 HP
VOLTAGE 230V/460V AC/3 PH
MACHINE WEIGHT 3,400 LBS.
STANDARD EQUIMENT:
8" 3 JAW CHUCK
10" 4 JAW CHUCK
STEADY REST
FOLLOW REST
COOLANT SYSTEM
HALOGEN WORK LIGHT
4 WAY TOOL POST
CKUCK GUARD
FULL LENGTH SPLASH GUARD
