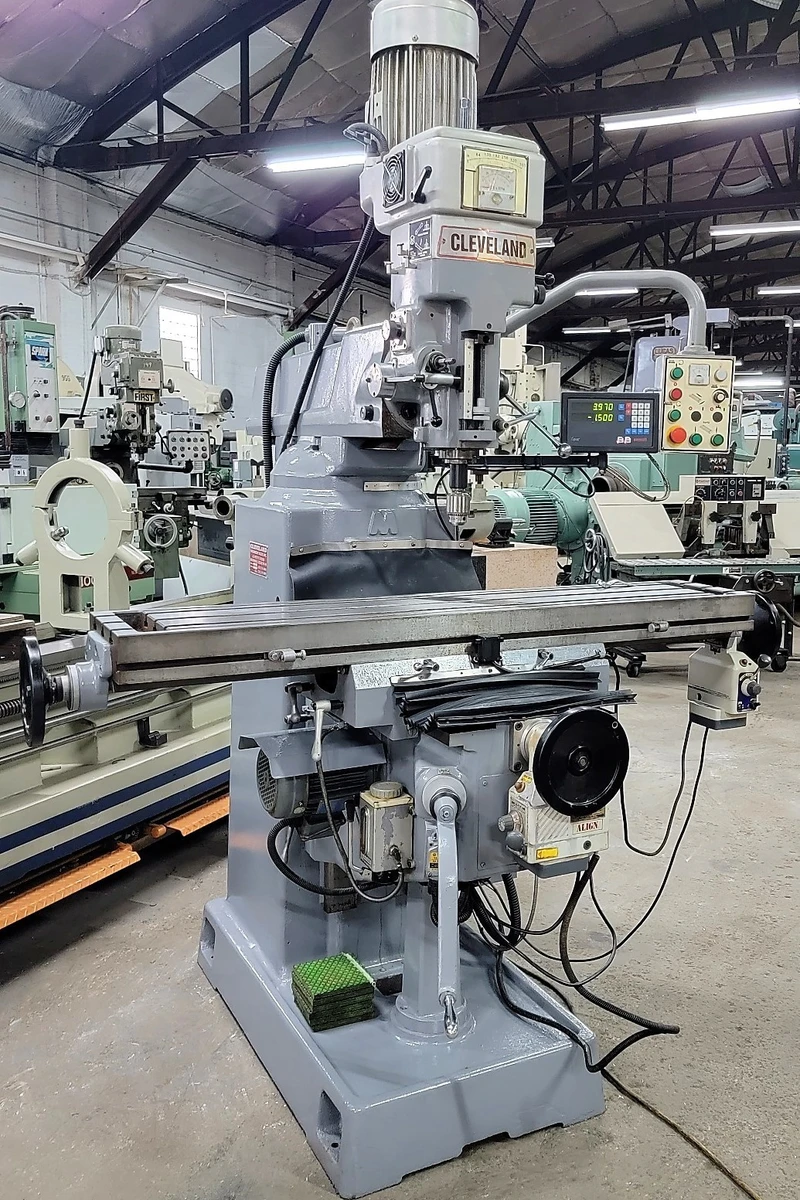

USED CLEVELAND LARGE K6F VERTICAL MILLING MACHINE

TABLE:
WORK TABLE: has Large 11"X 58" OPT
TABLE T-SLOTS (WxN): 0.63" X 3
TABLE LOAD MAX. (CENTER): 1200 LBS. (CENTER)
X-AXIS TRAVEL: 43"
Y-AXIS TRAVEL: 18"
Z-AXIS TRAVEL: 19-11/16"
QUILL TRAVEL: 6"
SPINDLE NOSE TO TABLE: 3/4" - 16-3/4"
SPINDLE CENTER TO COLUMN: 2-5/8 - 25-1/2"
RAM TRAVEL: 19"
RIGID HEAD SWIVELS LEFT TO RIGHT 90 DEGREES
SPINDLE TAPER: #40
SPINDLE SPEED: RPM/LO 70 to 425, RPM/HI 600 to 3600
QUILL LARGE DIAMETER: 4.125"
QUILL FEED: 0.002", 0.004", 0.006"
SPINDLE MOTOR: 4.5KW
COOLANT SYSTEM
WORK LIGHT
FLOOR SPACE: 106" X 72" X 90"
WEIGHT: 4000 LBS.
EXTRA EQUIPMENT:
2 SERVO FEEDS TYPE 150 ON TABLE AND SADDLE AXIS
NEWALL 2 AXIS DIGITAL READOUT SYSTEM
RAPID TRAVERSE ON KNEE
MADE IN TAIWAN
