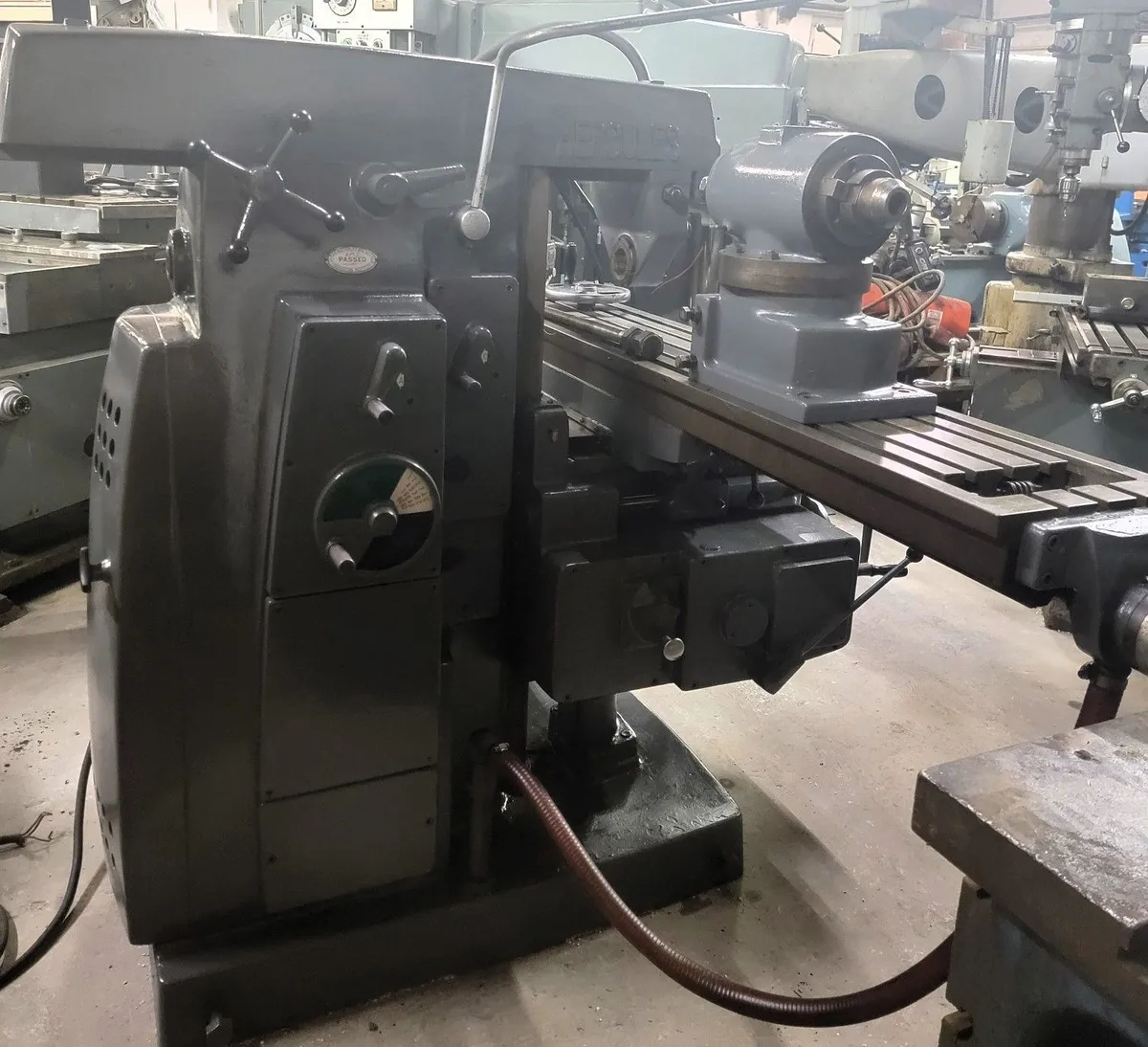

USED HERCULES NO3 MILL WITH VERT HEAD

SPECIFICATIONS TAKEN FROM MACHINE MANUAL:

TABLE:
Max. Travel Longitudinal 38"
Cross (with brace) 9 3/8" (7 3/8")
Vertical 16 1/8"
Working Surface 63" x 12"
T-Slots number and size three 5/8" x 2 3/8"
Feed Range
Infinitely variable 60
Longitudinal 1" - 51"
Cross 9/16" - 27 3/4"
Vertical 5/16" - 13 7/8"
Power Rapid Traverse
longitudinal x cross x vertical 113" x 61 3/4" x 30 3/4"

SPINDLE:
Spindle Nose No. 50 Std.
Speeds Number 12 Selections
Range RPM 56 80 106 138 199 266 315
453 603 784 1,127 1,503
Centerline spindle to top of table max 16 1/8"
Centerline spindle to bottom face of overarm 6 1/8"

Motor pulley diameter 5 29/32"

V Belt 4 Belts B55

Motor
Main Motor enclosed 7 1/2HP 220V/440V/3 Ph
ventilated drip proof
Feed Motor enclosed 2 HP 220V/440V/3 Ph
ventilated drip proof
Coolant pump enclosed 220V/440V/3 Ph
ventilated drip proof

Floor Space
width x depth (height) 116 9/16" x 82 3/8" (60 5/8")

Net Weight (lbs) 5100

(1) Horizontal Arbor Support
Vertical Head w/swivel
#50 Taper
