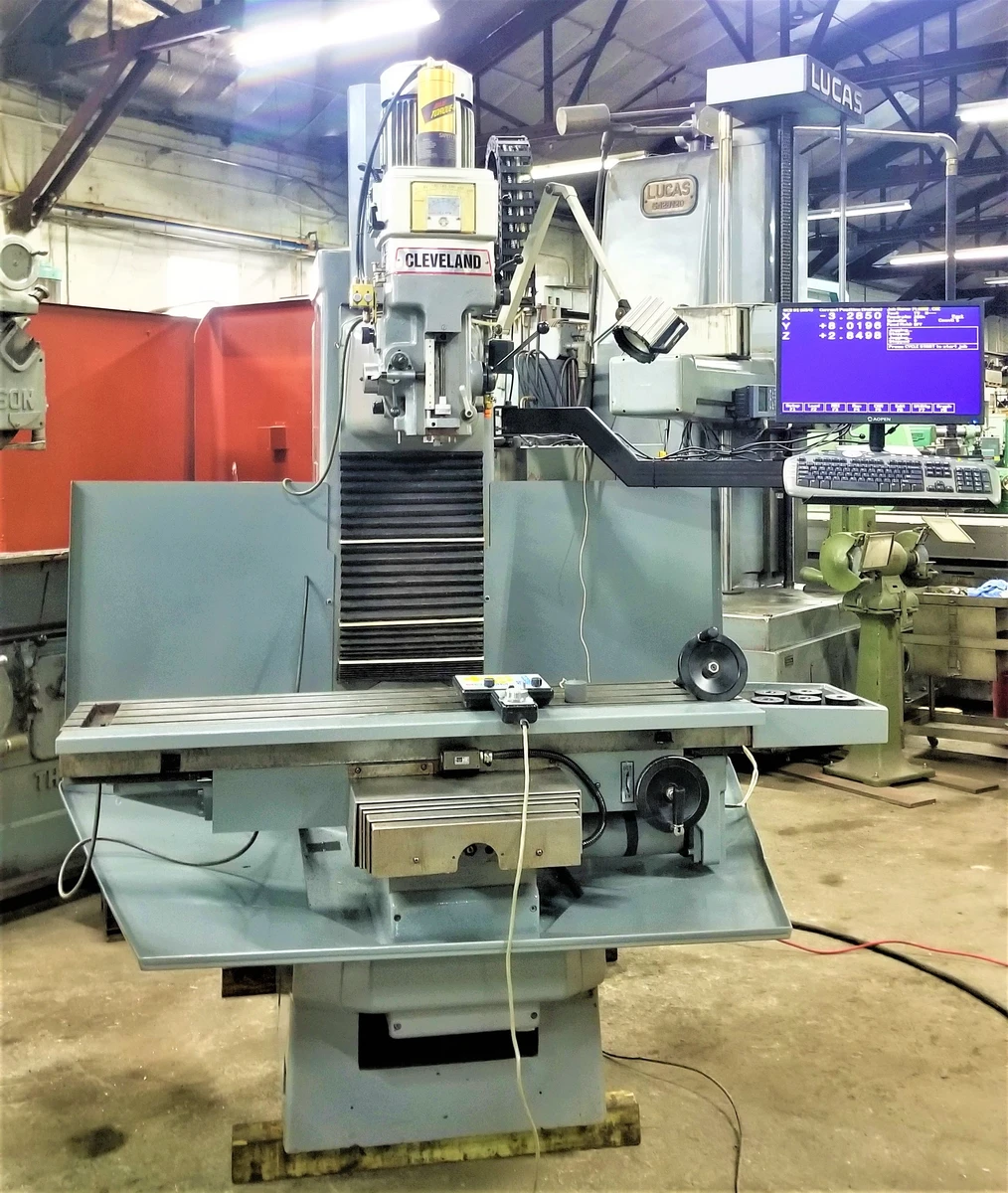

USED CLEVELAND VERTICAL CNC BED MILL MODEL: B6FC WITH CENTROID M39 CONTROL
Mills, Vertical / CNC
WORK TABLE: 13" X 58"
MAX. TABLE LOAD (CENTER): 1,800 LBS.
X-AXIS TRAVEL: 40"
Y-AXIS TRAVEL: 22"
Z-AXIS TRAVEL: 20"
QUILL TRAVEL 6"
SPINDLE NOSE TO TABLE: 3-3/8"" TO 25-3/8"
SPINDLE CENTER TO COLUMN: 23"
SPINDLE TAPER: NST#40
SPINDLE SPEED: (2 SPEED) 0 ~ 4,000 RPM
3-AXIS DRIVE MOTOR: DC SERVO. MOTOR
RAPID FEED: 160 IPM.
CUTTING FEED: 120 IPM.
SPINDLE MOTOR: 6 HP. 3PH/ 220 V
COOLANT PUMP MOTOR: 1/5 HP
FLOOR SPACE: 120" L-R X 68"F-B X 100"H
WEIGHT: 5,200 LBS.
* CENTROID M-39 CNC CONTROL WITH MASTERCAM LEVEL 1 ALREADY INSTALLED
* ISO 9002 QUALITY ASSURANCE
* 6 HP FREQUENCY SPINDLE MOTOR
* NST #40 TAPER IN THE SPINDLE
* 4,000 RPM SPINDLE SPEED WITH HI/LOW SHIFTER
* 3-AXIS DC SERVO DRIVE MOTORS
* CLASS 7 SPINDLE BEARING
* HARDENED & GROUND TABLE WITH CENTER T SLOT, GROUND FOR QUICK SETTING
* HARDENED & GROUND BOX WAYS WITH TURCITE-B COATING
* MEEHANITE CASTING FOR RIGID CONSTRUCTION
* SAFETY HANDWHEEL
* STANDARD WAY COVERS.
* SUPER WIDE SADDLE TO ENSURE ACCURACY MOVEMENT.
* 1-1/4" PRECISION GROUND BALL SCREWS WITH DOUBLE NUT FOR ACCURACY MOVEMENT.
* LASER COMPENSATION TO ENSURE HIGH ACCURACY
* BUILT IN COOLANT SYSTEM
* AUTO LUBRICATION SYSTEM
* BUILT-IN QUARTZ WORK LIGHT
* CHIP TRAY
CONTROL FEATURES:
-COLOR CONTROLS COME WITH MASTERCAM LEVEL 1 ALREADY INSTALLED
-32 BIT PC BASED DSP TECHNOLOGY
-UPDATEABLE SOFTWARE
-600 BLOCKS PER SECOND PROCESS SPEED
-600+ MEGABYTES PROGRAM STORAGE
-"NO PAUSE" HIGH SPEED 3D CONTOURING
-3 AXIS SIMATANEOUSLY
-CANNED DRILL CYCLES
-CANNED CYCLES (FACING, RECTANGULAR & CIRCULAR POCKET)
-CUTTER RADIUS COMPENSATION
-CONVERSATIONAL PROGRAMMING/SHOP FLOOR PROGRAMMING
-FANUC STYLE G & M CODE
-3D TOOL PATH GRAPHICS
-MATH HELP
-TEACH MODE
-COOLANT FUNCTION KEYS
-RS-232, MOUSE & PARALLEL PORTS
-FLOPPY DRIVE
-PROBING CYCLES (OPTIONAL)
-DIGITIZING (OPTIONAL)
