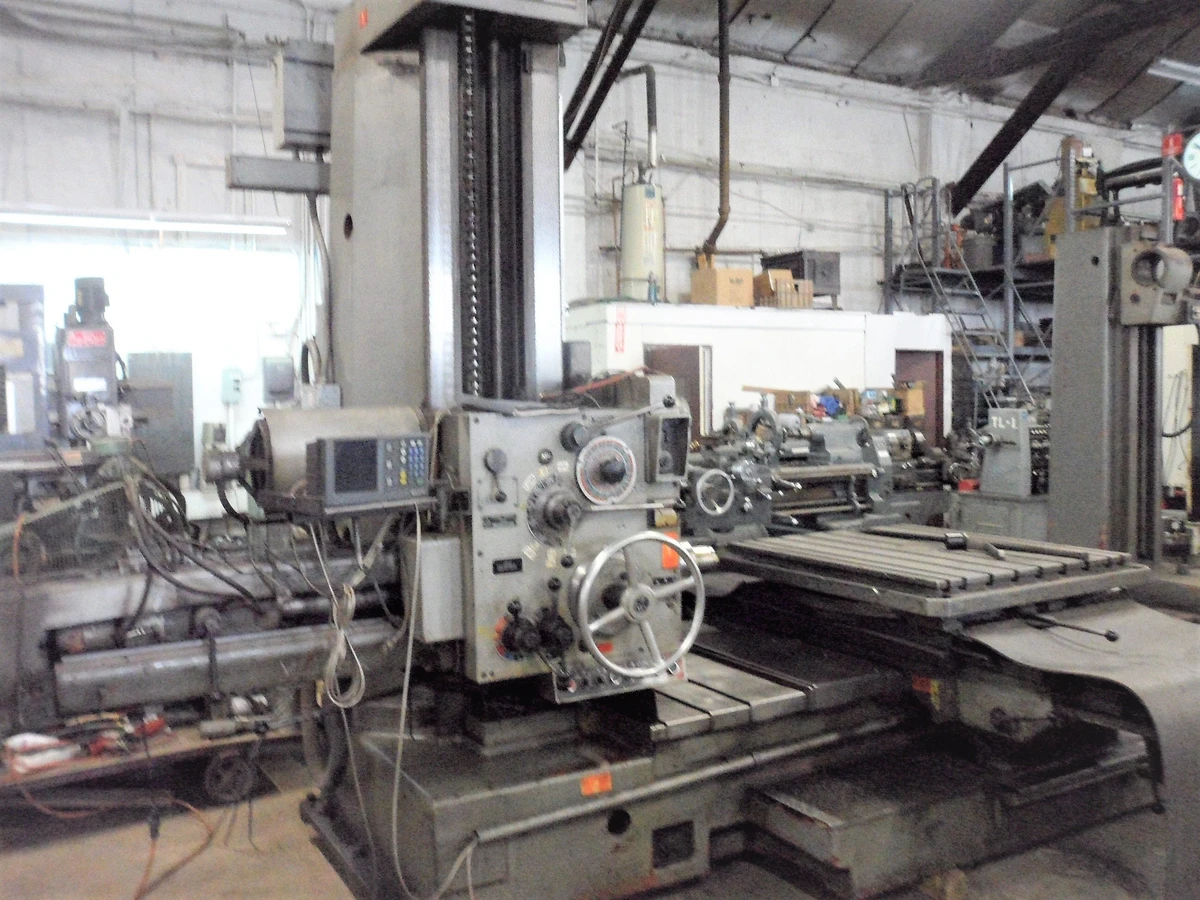

USED 3.5" TOS TABLE TYPE HORIZ. BORING MILL

Spindle dia.: 3.5" (90 MM)
Spindle taper: #40 Taper with Power Draw Bar
Spindle speeds: 28 to 1400 RPM
X-axis: 46" Table Cross Travel
Y-axis: 44" Vertical Travel of Headstock
Z-axis: 27.95" Spindle Stroke
W-axis: 55" Longitudinal Travel of table
Pendant Control
Box Ways
BUILT IN 39" x 44" Power Rotary Table
Built in Outriggers Ways
* Hardways
* Tailstock w/Power Elevation
* 10 HP Main Motor (7.5 Kw)
* 3 axis ANILAM DIGITAL READOUT SYSTEM
Machine Weight - 21,000 lbs.
Overall Machine Size - 114"H, 96" W, 17'4" L

Voltage - 240 Volts, 60 Cycle, 3 PH
A & B Electrics
15 pc. Tooling Package
