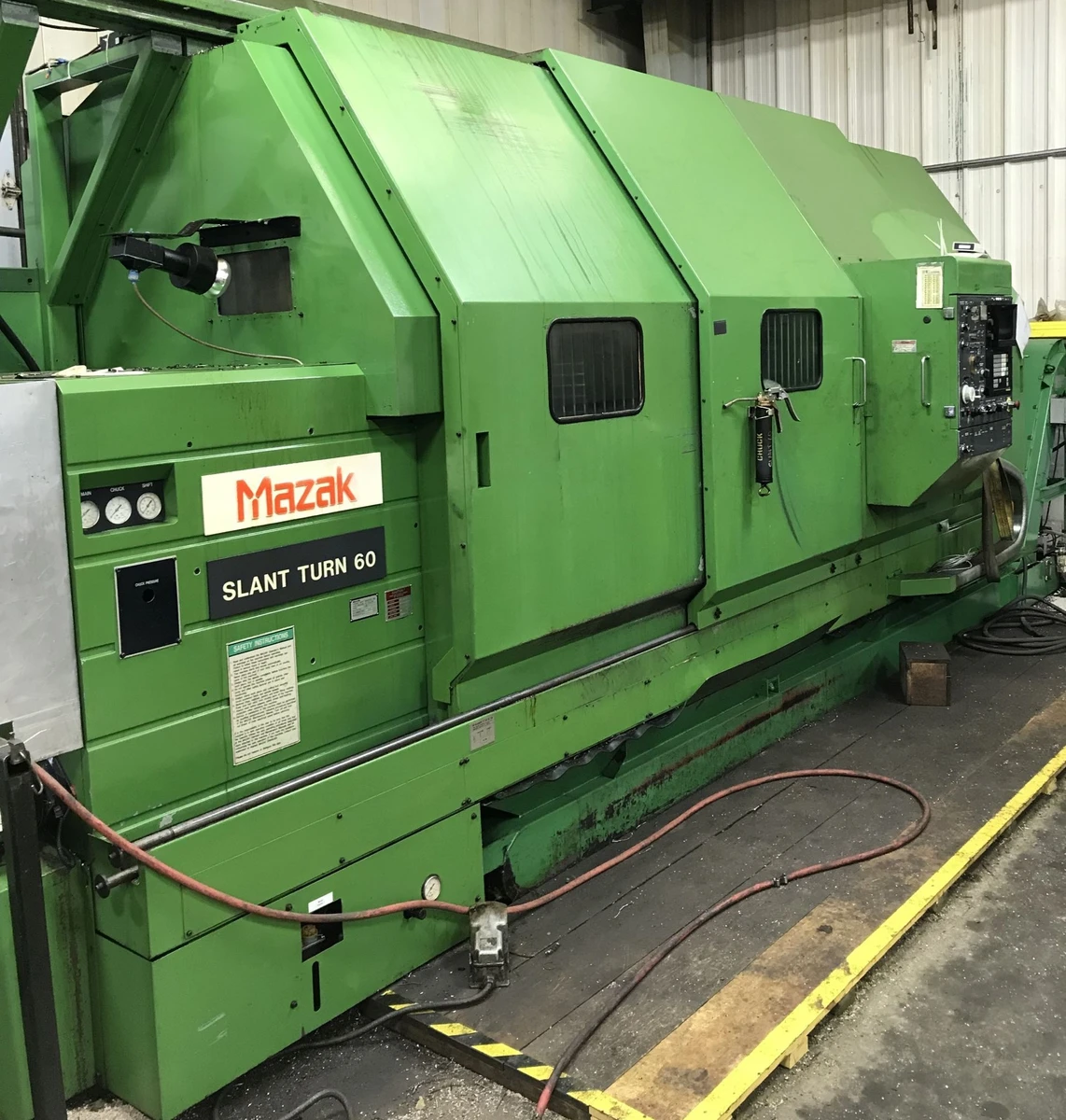

USED MAZAK SLANTTURN 60 CNC TURNING CENTER

MAZAK SLANT TURN 60 CNC TURNING CENTER
Max Swing Over Bed...................................... 36."
Max Swing Over Turret................................... 27"
Chuck Size.............................................. 20"
Cross Travel (X-Axis)................................... 25.6"
Longitudinal Travel (Z-Axis)............................105"
Rapid Traverse Rate (X-Axis)............................ 315 IPM
Rapid Traverse Rate (Y-Axis)............................ 400 IPM
Number of Turrets....................................... 1
Turret Positions........................................ 15
Spindle Bore............................................ 6.5
Spindle Nose............................................ A2-11
Spindle Has Heavy Duty 4 Speed Fully
Enclosed, Gearbox
Spindle Speed Range ..................up to 1000 RPM
ProgramableTailstock
Tail Stock Quill Diameter........................... 5"
Tail Stock Quill Travel................................. 6"
Tail Stock Body Travel ................................77"
Machine Main Motor............................................... 40 Hp.
Approximate Overall Machine Dimensions.......................... 110" x 320"
Approximate Machine Height.............................. 130"
Approximate Machine Weight......................... 38,800 LBS
Coolant System, Chip Conveyor
Full Enclosure Sliding Doors
Hardened & Ground Ways
19 1/2" Forkardt Air Operated 3 Jaw Chuck
Hydraulic Steady Rest
FANUC 11T CONTROL
These are Catalog Specifications

PULLED FROM LOCALPLANT MAKING PARTS, SOME UPGRADES RECEIVED NEW MACHINE
