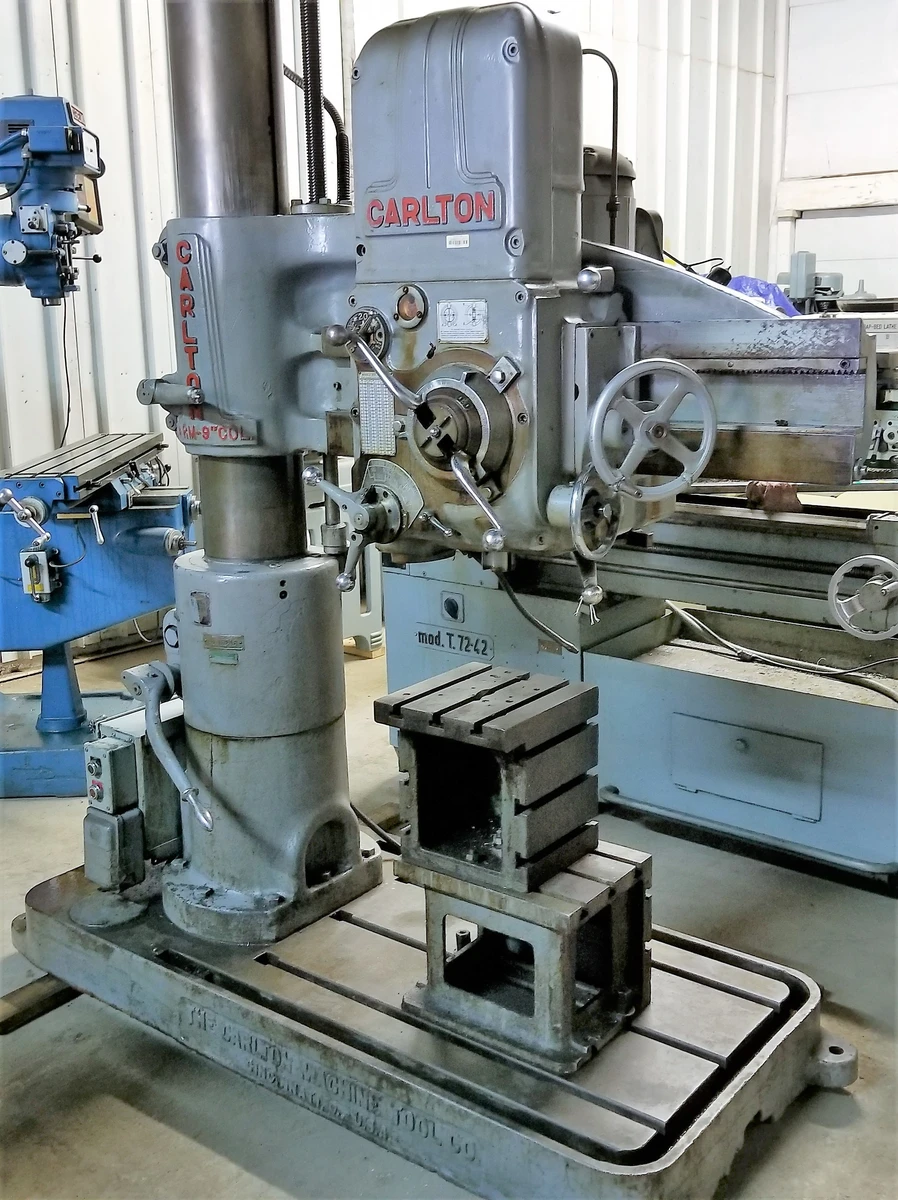

USED CARLTON RADIAL DRILL 3' x 9"
Have one to sell?
ConditionUsed
1 available
9 SPINDLE SPEEDS: 100 - 2000 RPM
#4 M.T. IN SPINDLE
2-1/2" QUILL DIAMETER
10" QUILL TRAVEL
4 FEED CHANGES: .06 - .011 - .015 - .020
MANUAL CLAMPING ON ARM
MANUAL CLAMP ON HEAD
POWER ELEVATION
BOX TABLES 12"x12"x15 3/4" and 12" x 11 1/2" x 13"
MOTOR: 3 H.P.
WIRED 440 VOLT/3PHASE
OVERALL DIMENSIONS: 90"H X 72"L X 40" F to B
APPROXIMATE WEIGHT: 4,000 LBS.
Can be seen under power on our showroom floor!!
