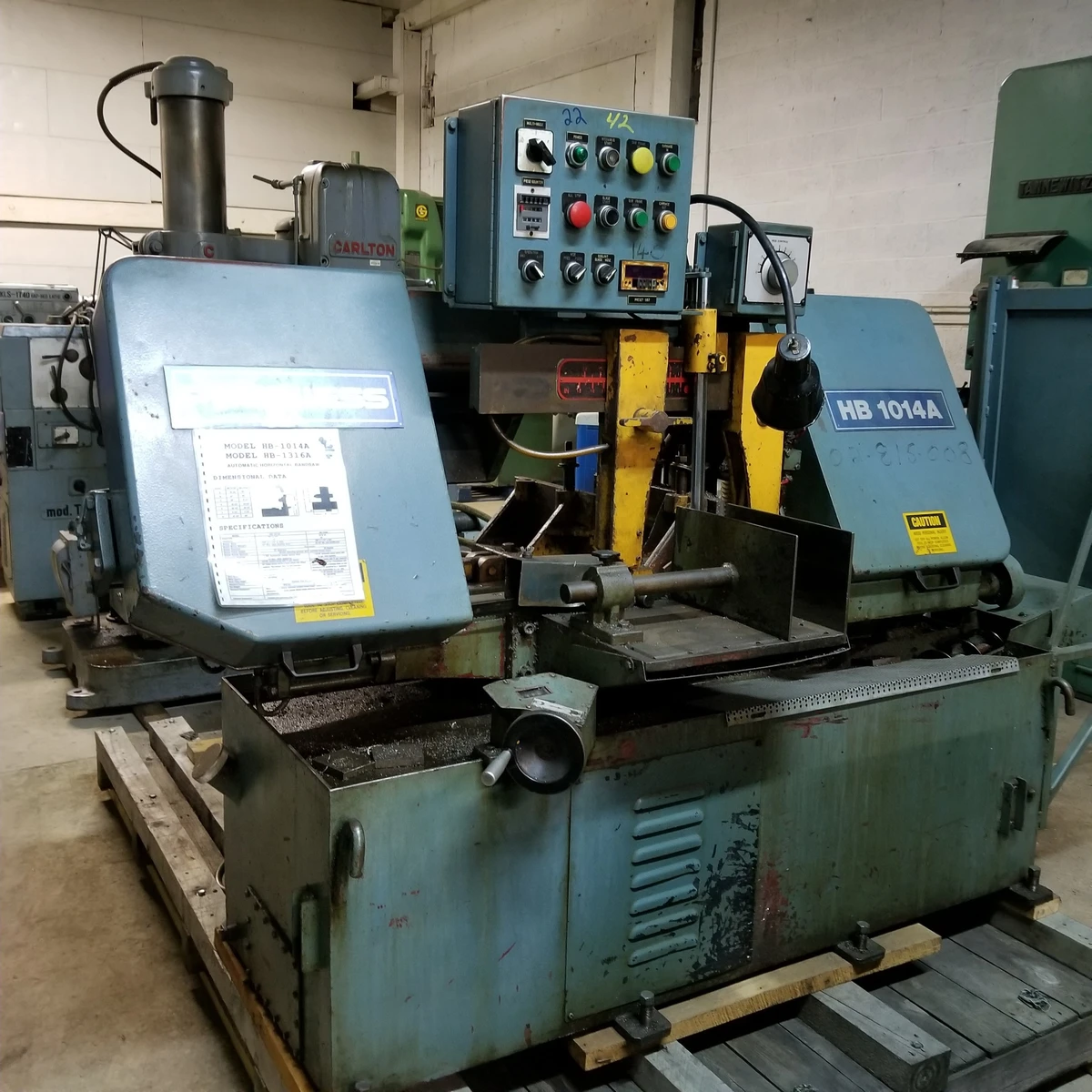

USED PEERLESS 13" AUTOMATIC HORIZONTAL BANDSAW

Capacity: 10" x 14" Rectangle
Capacity: 13" Round
Blade Size: 150" x 1 1/4" x .042
Blade Drive Wheels: 16" Dia. Cast Ductile Iron
Blade Tension: Hydraulic
Blade Twist Angle: 57 degrees
Blade Guide System: Roller bearing guides with carbide faced wiper
Hydraulic System: 1 HP hydraulic pump motor w/ 16 gal. tank capacity
Coolant System: 1/8 HP coolant pump with 21 gal. resevoir
Stock Index System: 24" index stroke set by a hand wheel with digital readout. The carriage rides on
ball bearings, & is powered by a hydraulic piston w/repeatability of + or - .005
Drive Motor: 5 HP 230/460 Volt
Blade Speeds: 60 - 400 SFPM
Work Table Height: 29"
Net Weight: approx. 3630 lbs.
Standard Equipment: blade breakage switch, infinitely variable frame height selector, out of stock switch,
Wired 220 V 3ph but dual voltage, electrical update 2000
electric tachometer, blade guard, power driven blade cleaning brush, floating jaws (1316 only)
fast approach
Optional Equipment on this saw:, CHIP AUGER CONVEYOR , variable vise pressure
Parts and Operating Manual
LONG ROLLER STOCK TABLE INCLUDED
