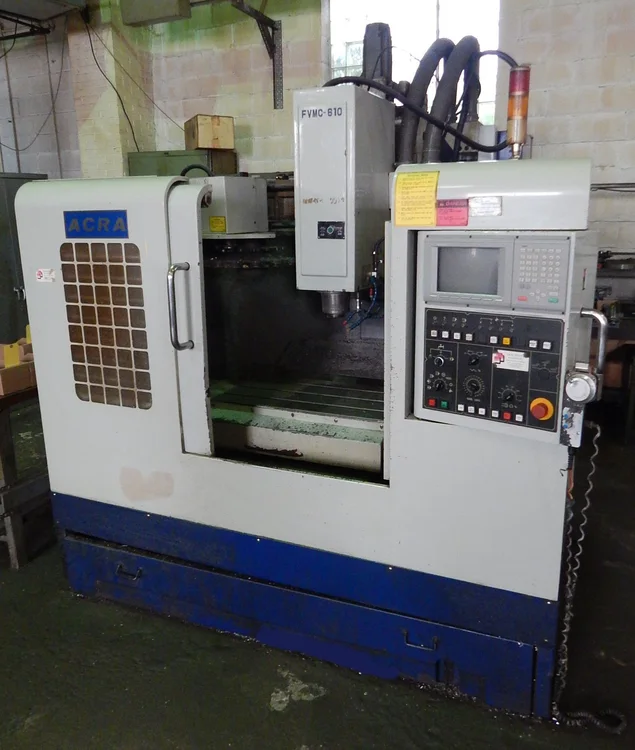

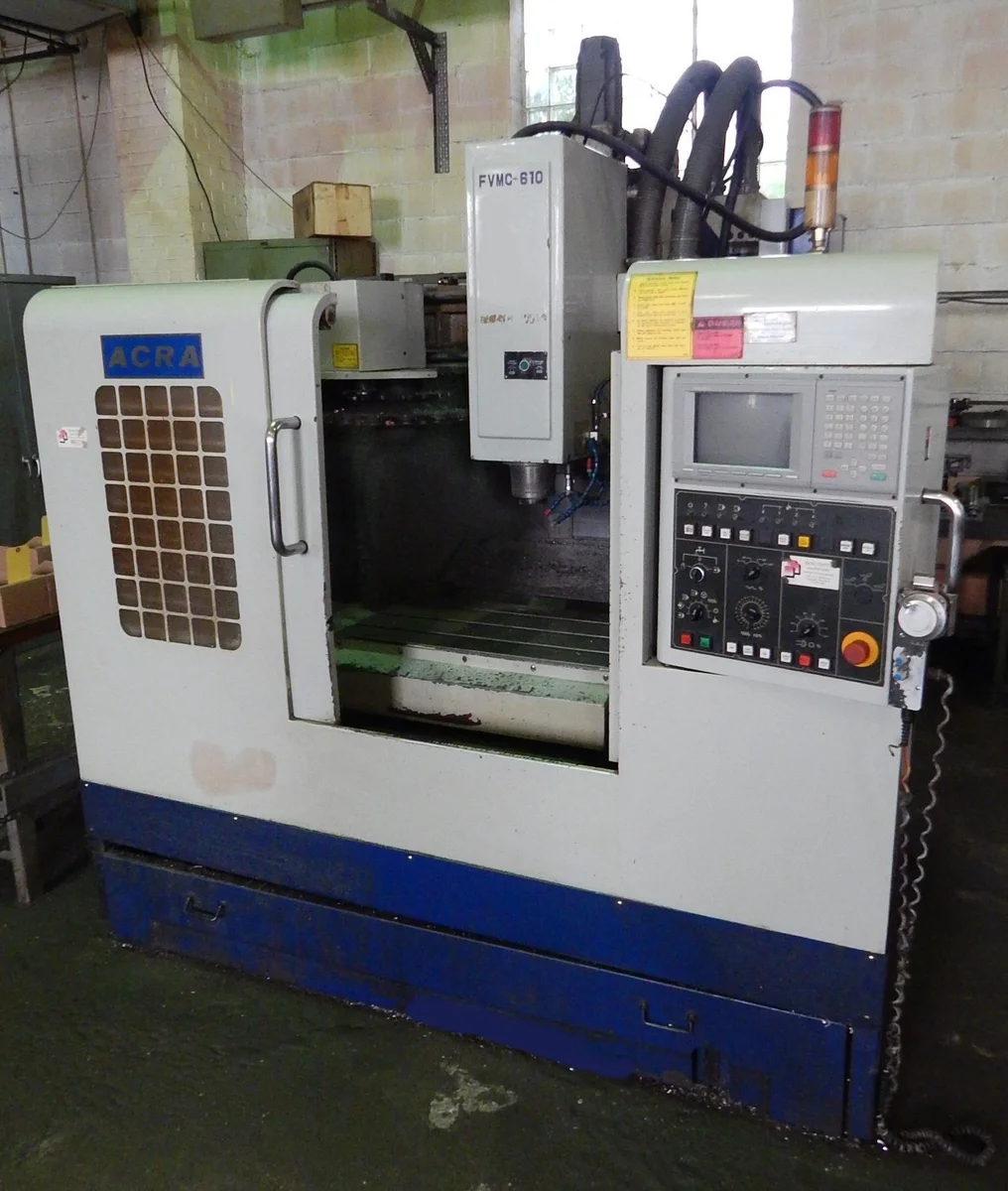

USED ACRA CNC Vertical Machining Center

Mitsubishi Meldas CNC Control
Full Enclosure 16 Tool Carousel
Rigid Box Ways Worklight
AC Digital Drives Pilot Lamp
Ribbed Castings Levelling Bolts and Pads
No Table Overhang Manuals, toolbox

TABLE: Overall Size 31.5" x 17.7"
T Slots (#/W/P) 3 / .02" / 4.9"
Max Table Load 660 lbs.
TRAVELS: X / Y / Z 23.6" x 18.9" x 19.7"
Spindle to Column 18.9"
Spindle to Table 5.9" - 25.6"
SPINDLE: Taper BT-40
Speed 8000 RPM
FEEDRATES: Rapid X, Y / Z 590 IPM/472 IPM
Cutting Feedrate 0.04 - 196 IPM
ACCURACIES: Positioning +-0.0002"/12"
Repeatability +-0.0001"
NOTE: These accuracies with full table load
ATC: No. of Tools 16
Type of Tool Changer Carousel
Max Tool Dia./Length 3.1"/9.8"
Max Tool Weight 15.4 lbs.
MOTORS: Spindle Motor (30 min) 10 Hp
Axes 1.3 Hp
Coolant 1.2 Hp
OVERVIEW: Net Weight 8,800 lbs.
Footprint 95"x94"x97"
Power 15 KVA
Air Required 80 PSI

ALSO HAVE AVAILABLE AS AN OPTION :

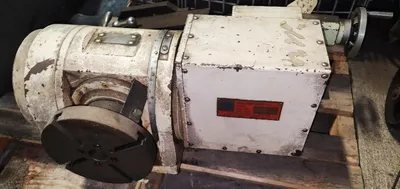

4TH AXIS TNC200 4AXIS WITH 7 3/4" T-SLOTTED PLATE
