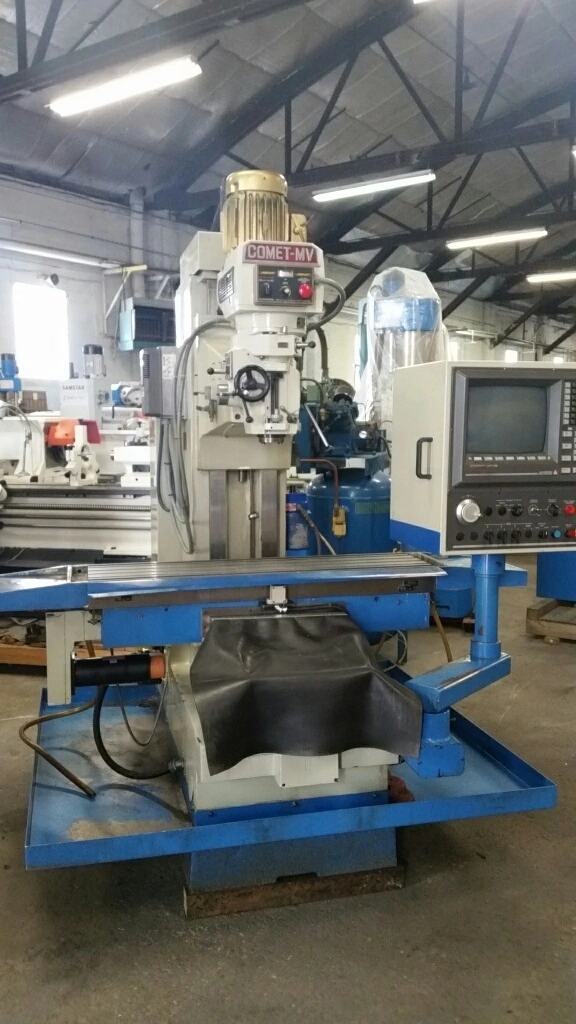

USED MIGHTY COMET MV-6 CNC BED MILL WITH DELTA DYNAPATH CONTROL

Table size 13" x 49-1/2"
Maximum table load 1500 lbs.
Range: longitudinal (X) 40"
           cross (Y) 20"
           head (Z) 20"
           quill 5"
Distance from centerline of spindle to face of column 20"
Minimum/Maximum distance, nose of spindle to top
     of table 2"/22"
Quill diameter 4 1/8"
Spindle taper #40 N.S.T.
Spindle head swivel - plus or minus 45 degrees
Infinitely variable spindle speeds, two ranges - 70 to 3,750 RPM
Traverse rate 250 I.P.M.
Feed rate 0.1 - 150 I.P.M

Equipped With:
DYNAPATH Delta 50-MU three-axis CNC
     manual pulse generator, 3.5" floppy & hard disk drives, RS-232 port, calc-
     assist package, conversational graphics and EIA/G-code programming
Box ways on the column and cross ways
Pneumatically actuated power draw bar
Automatic lubrication system
Programmable flood coolant system with chip pan
5 H.P. 3/60/220-440 volt spindle drive motor and electrical controls
Machine is wired for 220 volt operation.

Approximate Weight: 7,200 Lbs.
