USED C FRAME PRESS HANNIFIN HYDRAULIC

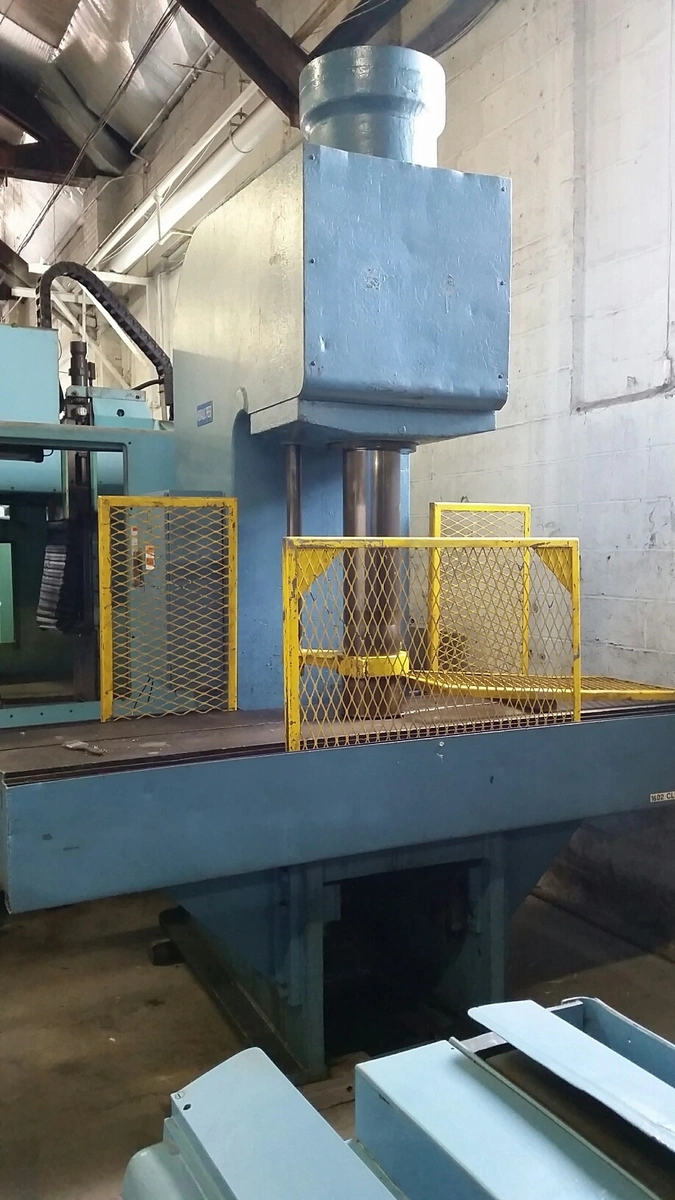

LARGE HANNIFIN HYDRAULIC C FRAME PRESS
Floor standing
Bed area: 96" L-R x 21" F-B
Stroke approx.: 18" maximum
Throat depth: 15"
Ram diameter: 7.5"
Floor to top of bed: 41"
Power unit: Vickers hydraulic pump,
Driven by 15 HP 1725 RPM 220/440/3/60 motor wired 440 v 3 ph at this time
Controls: Pushbutton operation with stroke & pressure control
Operator hand lever
Electric foot switch
Pressure gauge
Weight approx. 15,000#
Overall dimensions approx. 96" L-R x 66" F-B x 120"

SEE SHORT VIDEO : https://youtu.be/O7By-JKmSY4
