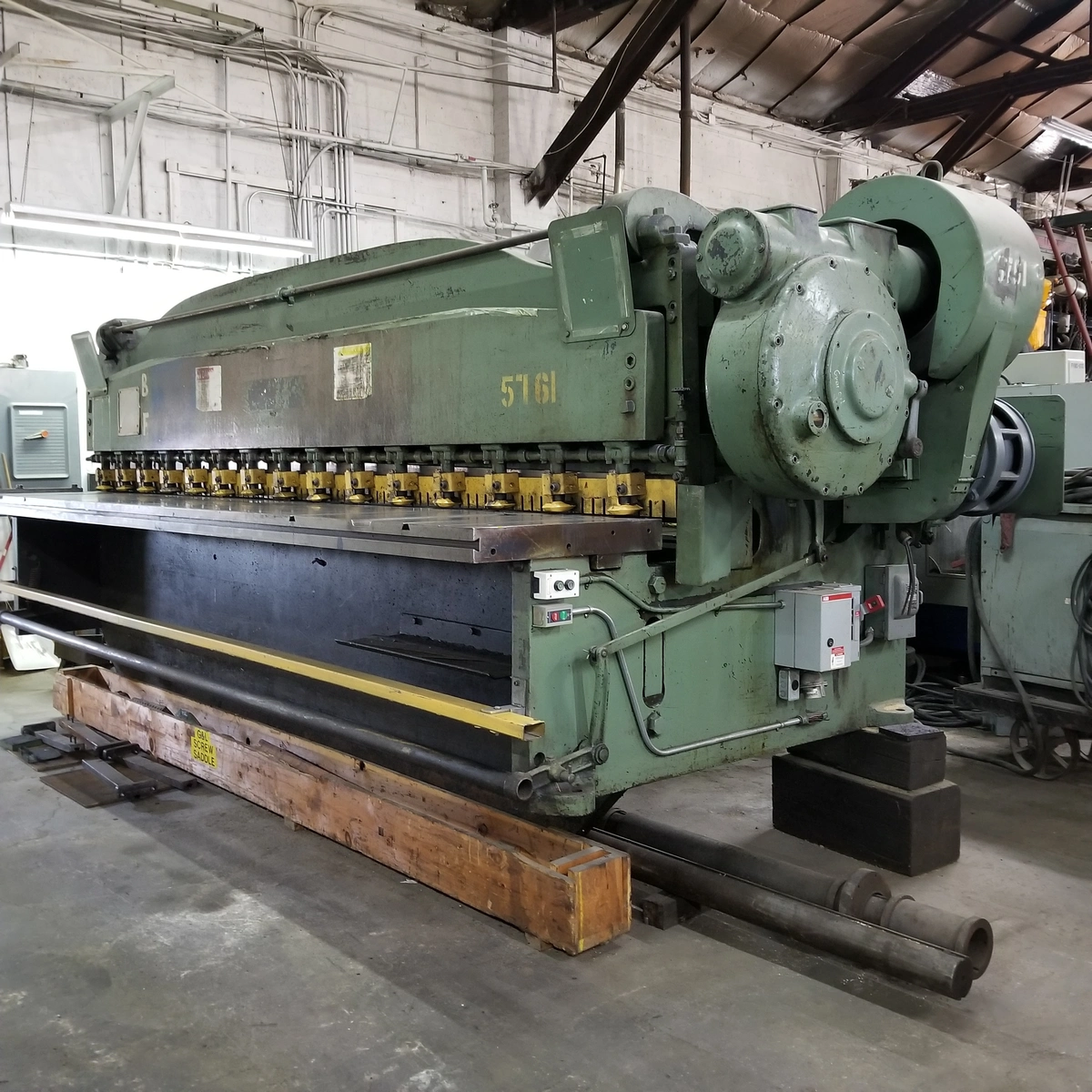

USED CINCINNATI SHEAR Series 2514, Mechanical Power Squaring Shear

Length between housings 14'3"
Cutting length 14'
Shearing capacity, mild steel 1/4"
Gap in frame 18"
Manual Back gauge rear 24"
Speed 50 SPM
Depth of pit required for bed 20"
Equipped With:
(4) T-Slots in shear bed and (1) full length t-slot in front of shear bed
Dual sets of inlaid scales on table surface
(15) Hydraulically actuated holddowns
(4) counterbalance cylinders
(1) Set of four-edged blades 5" X 1"
Centralized lubrication system
20 H.P. 3/60/230-460 volt drive motor and electrical controls
Machine is wired for 460 volt operation.

Approximate Weight: 36,000 Lbs.

Approximate Dimensions: 216" L-R x 92" F-B x 78" High (From Floor Level)
