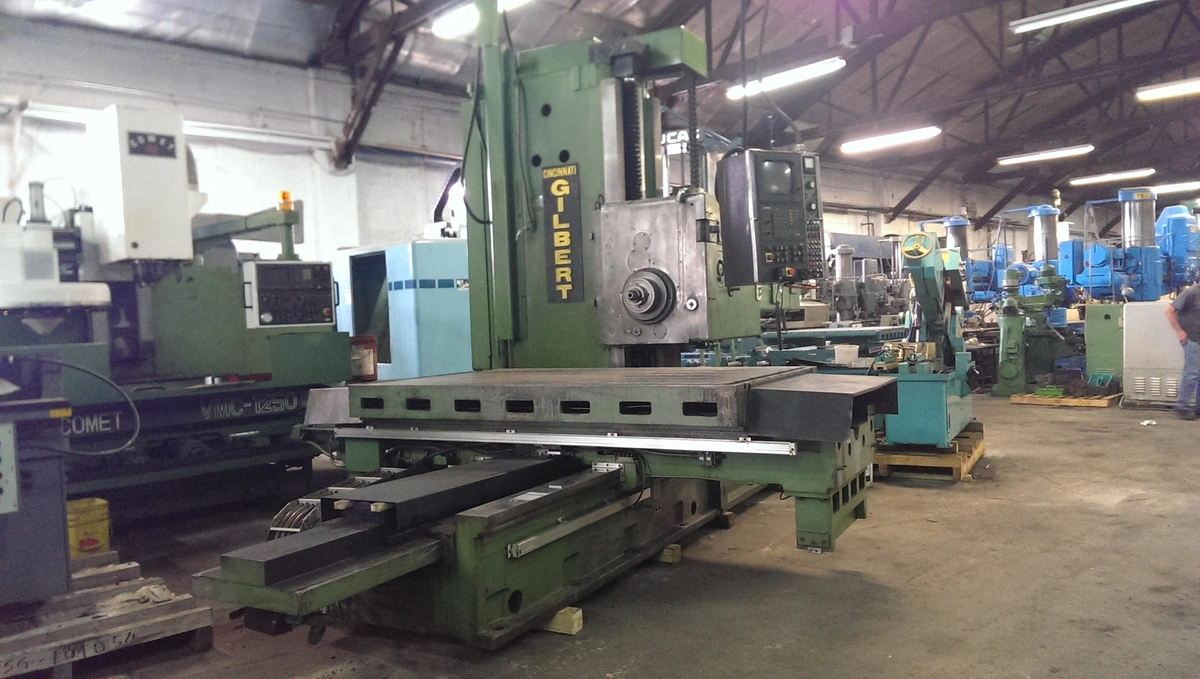

USED CINCINNATI GILBERT 5" CNC HORIZ BORING MILL

Specifications:
Table Type CNC HBM
Heidenhain Conversational Model
TNC 360 CNC Control with MPG
Servo Axis Motors, Torque 155 in./lb.
Pendant control
Ball Screws
Anti Friction Liners on All Sliding Surfaces
Hardened Steel Ways on Bed & Saddle
Automatic Locking
Automatic Lubrication
Coolant Pump
SPINDLE:
Spindle Diameter 5"
Spindle Taper #50
Spindle Motor 25 HP
Minimum Speed 15 RPM
Maximum Speed 1500 RPM
Speed Ranges, (27) Controlled by Pendent
TABLE SIZE: 48" x 84"
BED LENGTH: 98"
FEEDS: Infinitely Variable
Spindle & Saddle .05 - 60 IPM
Head & Table .5 - 120 IPM
TRAVELS:
Cross (X axis) 72"
Vertical (Y axis) 48"
Longitudinal (W axis) 44"
Spindle (Z axis) 36"
Overall Aprox. Dim. 21'6" L x 13' W x 12' 6" H
with travel add 46" to W
