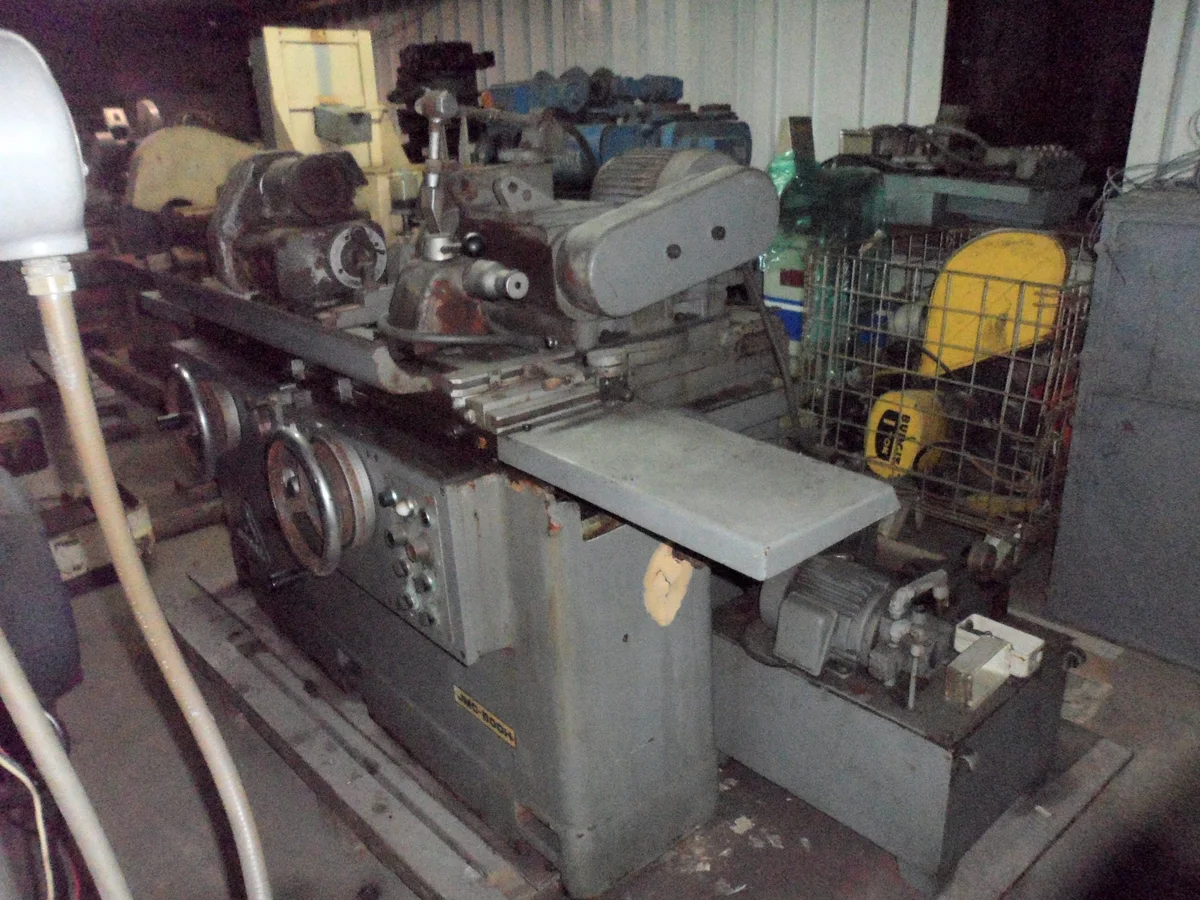

USED JACKMILL 600H UNIVERSAL CYLINDRICAL GRINDER
Have one to sell?
ConditionUsed
1 available
HYDRAULIC TABLE TRAVERSE
WHEELHEAD RAPID APPROACH & RETRACTION
WHEEL DRESSER ATTACHMENT
SWING OVER TABLE 8-5-8"
DISTANCE BETWEEN CENTERS 23-5/8"
WORK TABLE SWIVEL (WITH DIAL INDICATOR) 0-12 DEGREES
TABLE TRAVERSE SPEEDS 2.95 - 118 IPM
WORKHEAD SPEEDS (6 STEP) 100 - 500 RPM
WORKHEAD MOTOR 0.2 KW (0.268 HP)
WORKHEAD SPINDLE TAPER MT #4
WORKHEAD SWIVEL RANGE +90, -30 DEGREES
TAILSTOCK SPINDLE TAPER MT #3
WHEELHEAD SWIVEL =/- 30 DEGREES
GRINDING WHEEL CAPACITY 12" X 1-1/4" X 5"
WHEELHEAD RAPID INFEED STROKE 1-9/16"
WHEELHEAD SPEEDS (DEPENDING ON PULLEY) 2085 OR 2495 RPM
WHEELHEAD MOTOR 2.2 KW (2.94 HP)
MACHINE NET WEIGHT 4840 LBS.
