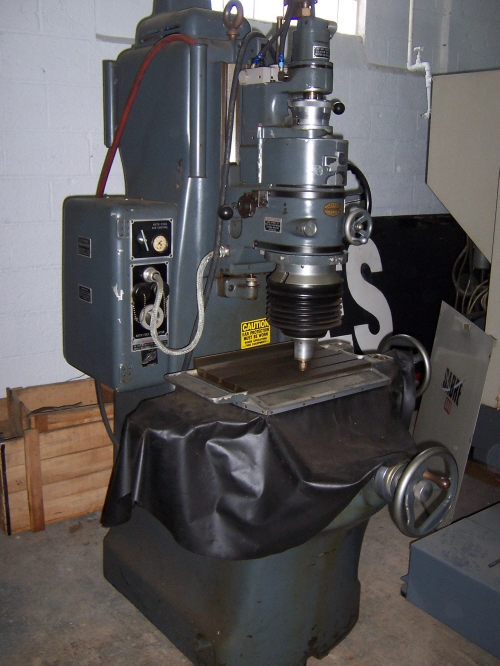

USED MOORE JIG GRINDER NO2
Have one to sell?
ConditionUsed
1 available
Table Dimensions (L x W): 19" x 10"
Longitudinal Table Travel, (X-Axis) 16.5"
Cross Table Travel, (Y-Axis) 10.5"
Spindle Slide Travel. 3.625"
Maximum Distance, Collet To Table 16"
Minimum Distance, Collet To Table. 0"
Distance, Spindle To Column
Column Ways: 10"
Column Below Ways 12.5"
(4) Spindle Speeds, Range 90 to 240 RPM
Grinding Wheel Speeds, Inf. Var. 15000 to 40000 RPM
Vertical Feed Rate, Inf. Var. 2 to 120 SPM
Grinding Capacity, Range 3/16" to 5"
Floor Space 4' x 4'11"
Overall Height 8'4"
Weight Approximately. 3150 LBS.
Purchased from NASA facility

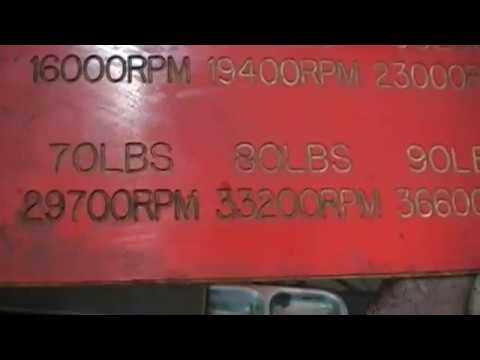

VIEW VIDEO https://youtu.be/JDwMddihWmI
AND ALSO https://youtu.be/q1EWOgXrbAI
